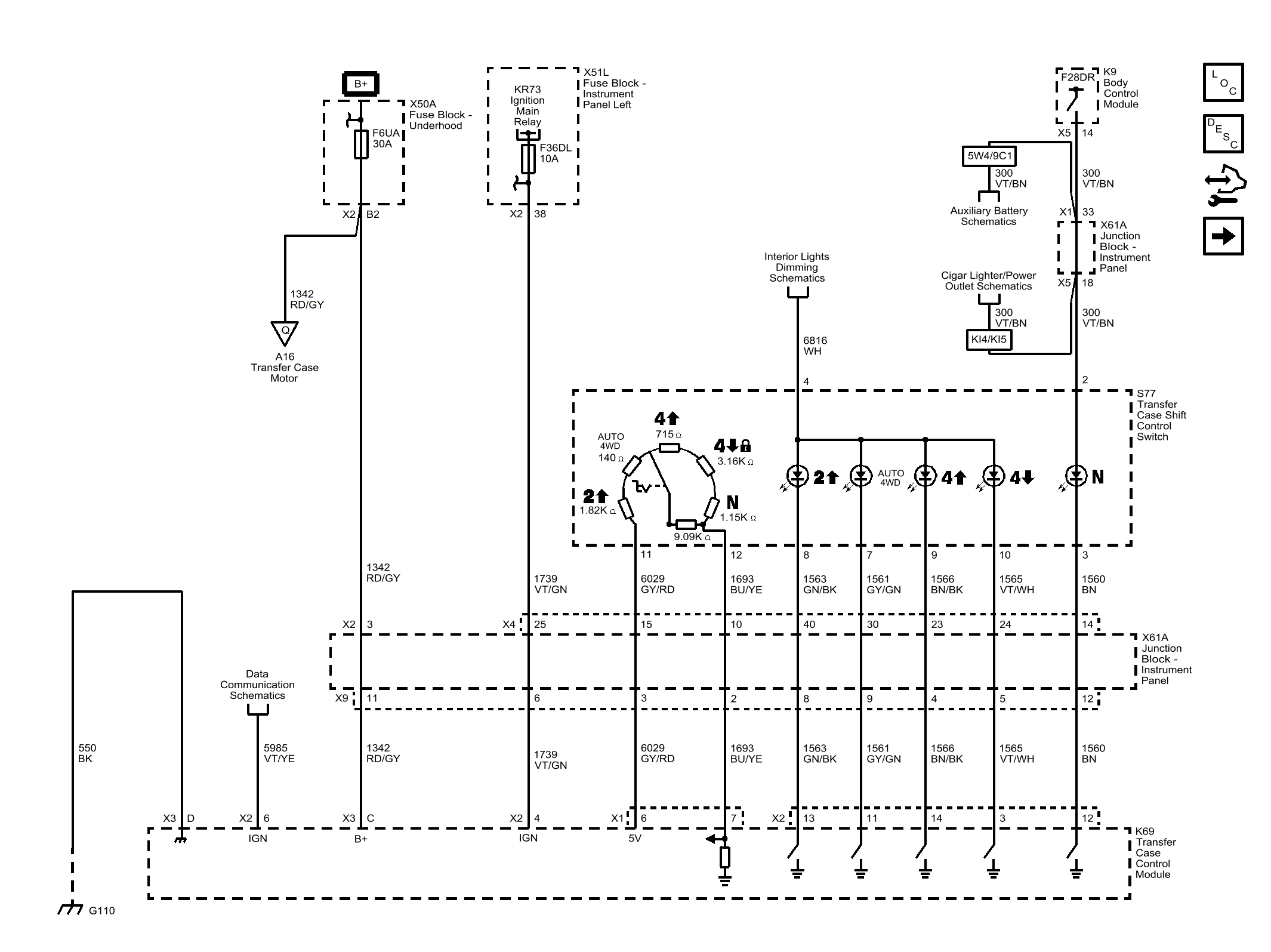

Home >> Chevrolet >> 2016 >> Suburban 3500 HD LS >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case - Mp 3023/3024 (NQH) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Transfer Case Control Wiring Schematics >> Power, Ground and Shift Controls
