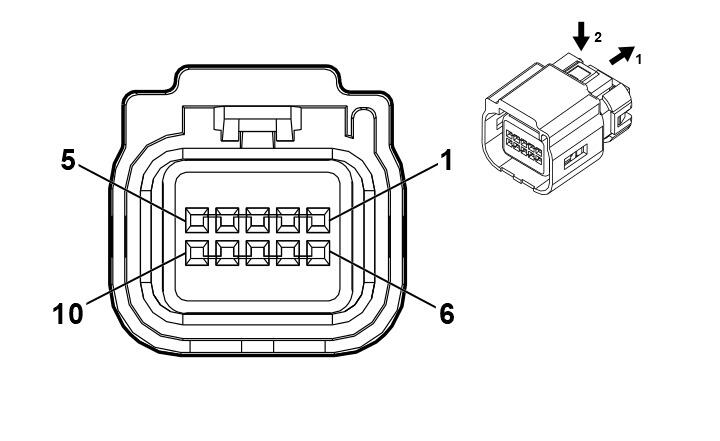

K43 Power Steering Control Module X3
|
|
Connector Part Information
- Harness Type: Power Steering Jumper
- OEM Connector: 28249220
- Service Connector: Service by Harness - See Part
- Description: 10 F 0.64 Kaizen Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD |
- |
5-Volt Reference |
I |
- |
| 2 |
0.5 |
TN |
- |
SDA |
I |
- |
| 3 |
0.5 |
BU/GN |
- |
TRQ2 PWM Q2 |
I |
- |
| 4 |
0.5 |
BK |
- |
Low Reference |
I |
- |
| 5 |
0.5 |
GN |
- |
TOR IN 1 |
I |
- |
| 6 |
0.5 |
VT |
- |
SCL |
I |
- |
| 7 |
0.5 |
WH |
- |
TRQ1 PWM Q1 |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
GN/BU |
- |
TOR IN 2 |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
