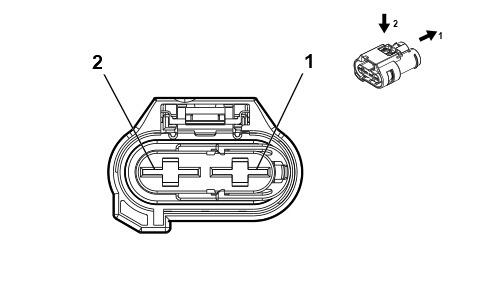

K43 Power Steering Control Module X2
|
|
Connector Part Information
- Harness Type: Power Steering Jumper
- OEM Connector: 28208864
- Service Connector: Service by Harness - See Part
- Description: 2-Way F Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
20 |
RD |
842 |
Battery Positive Voltage |
I |
- |
| 2 |
20 |
BK |
350 |
Ground |
I |
- |
