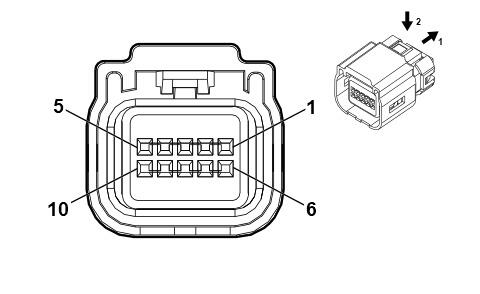

K43 Power Steering Control Module X1
|
|
Connector Part Information
- Harness Type: Power Steering Jumper
- OEM Connector: 28249219
- Service Connector: Service by Harness - See Part
- Description: 10-Way F Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/BU |
2501 |
High Speed GMLAN Serial Data (-) (1) |
I |
- |
| 2 |
0.5 |
BK |
2500 |
High Speed GMLAN Serial Data (+) (1) |
I |
- |
| 3 |
0.5 |
YE/BU |
6106 |
High Speed GMLAN Serial Data (-) (2) |
I |
- |
| 4 |
0.5 |
BK/OG |
6105 |
High Speed GMLAN Serial Data (+) (2) |
I |
- |
| 5 |
0.5 |
GY |
5986 |
Serial Data Communication Enable |
I |
- |
| 6 |
0.5 |
BK/GN |
2501 |
High Speed GMLAN Serial Data (-) (1) |
I |
- |
| 7 |
0.5 |
WH/BN |
2500 |
High Speed GMLAN Serial Data (+) (1) |
I |
- |
| 8 |
0.5 |
VT |
6106 |
High Speed GMLAN Serial Data (-) (2) |
I |
- |
| 9 |
0.5 |
BN/YE |
6105 |
High Speed GMLAN Serial Data (+) (2) |
I |
- |
| 10 |
- |
- |
- |
Not Used |
I |
- |
