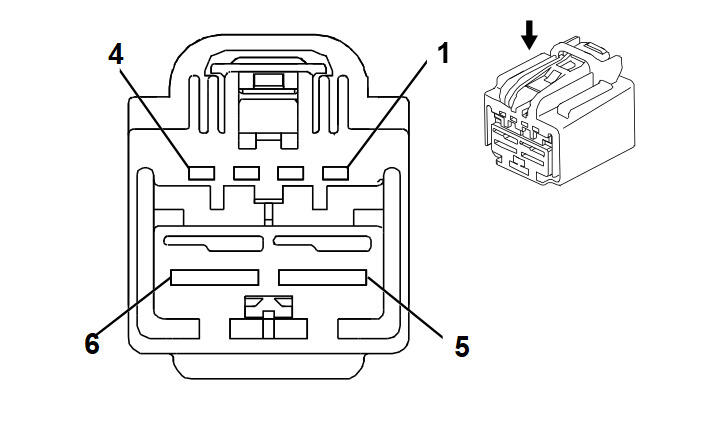

K40P Seat Memory Control Module - Passenger X2 (AG2/ULT)
|
|
Connector Part Information
- Harness Type: Passenger Seat Cushion
- OEM Connector: 7283-9749-30
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F YESC Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-42 (RD) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
L-GN/GY |
3758 |
Local Interconnect Network Serial Data Bus 13 |
I |
- |
| 5 |
2.5 |
BK |
1250 |
Ground |
II |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
