K40D Seat Memory Control Module - Driver X4 ((J45+A45)/ULT)
|
|

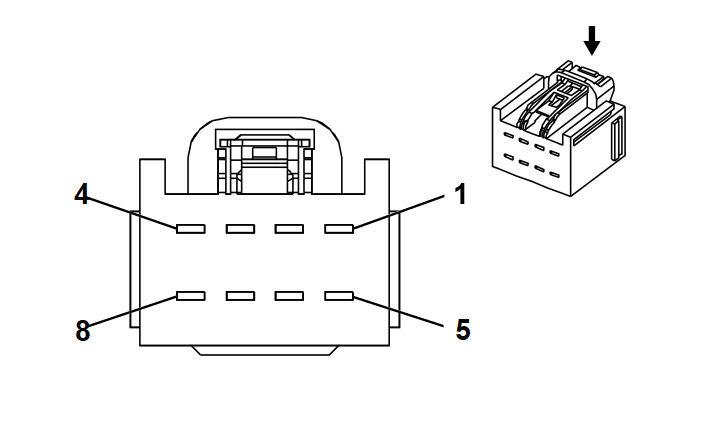

Connector Part Information
- Harness Type: Driver Seat Cushion
- OEM Connector: 7283-3243-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 2.8 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
L-GN/VT |
5130 |
Adjustable Pedal Actuator Forward Control |
I |
- |
| 2 |
1.5 |
YE |
5129 |
Adjustable Pedal Actuator Rearward Control |
I |
- |
| 3 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
