K36 Inflatable Restraint Sensing and Diagnostic Module X2

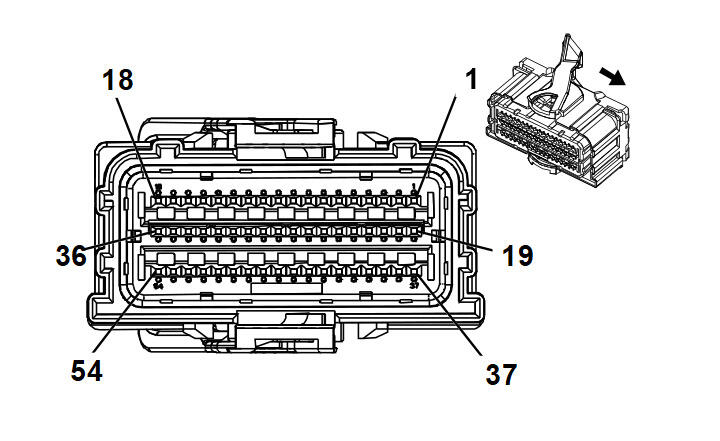

GM2817420
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13944372
  • Service Connector: 19303770
  • Description: 54-Way F 0.64 Series, Sealed (YE)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 19328872 J-35616-64B (LT BU) J-38125-11A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 0.35 BN/WH 4107 Center Side Impact Module High Control I -
2 0.35 VT 4106 Center Side Impact Module Low Control I -
3 - 8 - - - Not Occupied - -
9 0.35 OG/YE 3481 Driver Seat Belt Anchor Pretensioner High Control I -
10 0.35 YE/OG 3482 Driver Seat Belt Anchor Pretensioner Low Control I -
11 0.35 GY/OG 3480 Passenger Seat Belt Anchor Pretensioner Low Control I -
12 0.35 OG/BN 3479 Passenger Seat Belt Anchor Pretensioner High Control I -
13 0.35 OG/D-BU 3068 Driver Side Impact Module High Control I -
14 0.35 L-GN/OG 3069 Driver Side Impact Module Low Control I -
15 0.35 BN/OG 3067 Passenger Side Impact Module Low Control I -
16 0.35 OG/GY 3066 Passenger Side Impact Module High Control I -
17 0.35 OG/L-GN 5019 Left Front Head Curtain Module High Control I -
18 0.35 VT/OG 5020 Left Front Head Curtain Module Low Control I -
19 0.35 OG/L-GN 2132 Left Front Side Impact Sensing Module Signal I -
20 0.35 BK/OG 6628 Left Front Side Impact Sensing Module Low Reference I -
21 0.35 BK/OG 6629 Right Front Side Impact Sensing Module Low Reference I -
22 0.35 BN/OG 2134 Right Front Side Impact Sensing Module Signal I -
23 0.35 OG/YE 354 Left Front Discriminating Sensor Signal I -
24 0.35 BK/OG 5045 Left Front Discriminating Sensor Low Reference I -
25 0.35 BK/OG 5600 Right Front Discriminating Sensor Low Reference I -
26 0.35 OG/L-GN 1409 Right Front Discriminating Sensor Signal I -
27 0.35 OG/D-BU 6620 Left Middle Side Impact Sensing Module Signal I -
28 0.35 BK/OG 6621 Left Middle Side Impact Sensing Module Low Reference I -
29 0.35 BK/OG 6625 Right Middle Side Impact Sensing Module Low Reference I -
30 0.35 OG/VT 6624 Right Middle Side Impact Sensing Module Signal I -
31 - 36 - - - Not Occupied - -
37 0.5 RD 3477 Driver Seat Belt Retractor Pretensioner High Control I -
38 0.5 GY 3478 Driver Seat Belt Retractor Pretensioner Low Control I -
39 0.5 WH 3476 Passenger Seat Belt Retractor Pretensioner Low Control I -
40 0.5 L-GN 3475 Passenger Seat Belt Retractor Pretensioner High Control I -
41 0.35 OG/BN 238 Driver Seat Belt Switch Signal I -
42 0.35 OG/L-GN 5055 Driver Seat Position Switch Signal I -
43 0.35 BK/OG 1363 Driver Seat Belt Switch Low Reference I -
44 0.35 BK/OG 1361 Passenger Seat Belt Switch Low Reference I -
45 0.35 OG/VT 1362 Passenger Seat Belt Switch Signal I -
46 0.35 OG/D-BU 5056 Passenger Seat Position Switch Signal I -
47 - 52 - - - Not Occupied - -
53 0.35 OG/GY 5021 Right Front Head Curtain Module High Control I -
54 0.35 WH/OG 5022 Right Front Head Curtain Module Low Control I -
