K36 Inflatable Restraint Sensing and Diagnostic Module X1

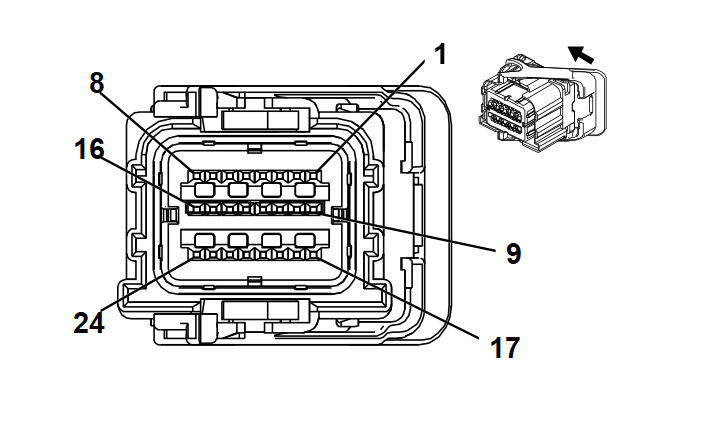

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	19328872	J-35616-64B (LT BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	OG/L-GN	3023	Steering Wheel Module Stage 2 High Control	I	-
2	0.35	WH/OG	3022	Steering Wheel Module Stage 2 Low Control	I	-
3	0.35	BN/OG	3020	Steering Wheel Module Stage 1 Low Control	I	-
4	0.35	OG/VT	3021	Steering Wheel Module Stage 1 High Control	I	-
5	0.35	YE/OG	3025	Passenger IP Module Stage 1 High Control	I	-
6	0.35	OG/WH	3024	Passenger IP Module Stage 1 Low Control	I	-
7	0.35	OG/VT	3026	Passenger IP Module Stage 2 Low Control	I	-
8	0.35	GY/OG	3027	Passenger IP Module Stage 2 High Control	I	-
9	0.5	RD/L-GN	4440	Battery Positive Voltage	I	-
10	0.35	VT/WH	5234	Passenger Seat Belt Indicator Control	I	-
11	0.35	D-BU	2307	Passenger Air Bag On Indicator Control	I	-
12	0.35	L-GN	2308	Passenger Air Bag Off Indicator Control	I	-
13	0.35	VT/OG	371	Passenger IP Module Disable Switch Signal	I	-
14	0.35	D-BU/OG	7328	Passenger IP Module Disable Switch Low Reference	I	-
15	0.5	L-GN	5060	Low Speed GMLAN Serial Data	I	-
16	-	-	-	Not Occupied	-	-
17	0.5	WH/D-BU	5986	Serial Data Communication Enable	I	-
18	0.5	D-BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	I	-
19	0.5	BK/WH	2751	Signal Ground	I	-
20	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	I	-
21 - 24	-	-	-	Not Occupied	-	-
