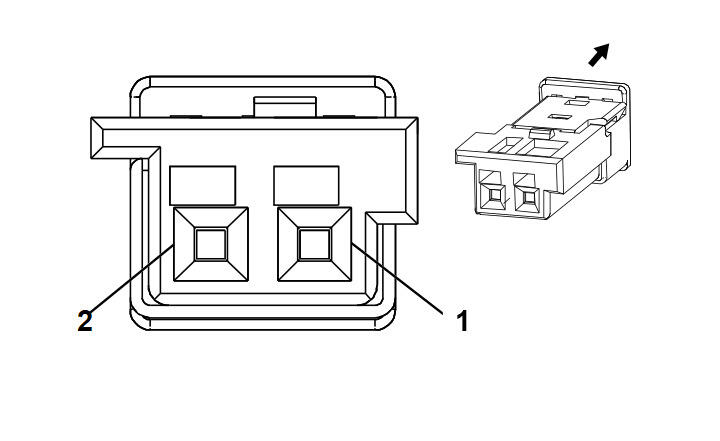

K32 Steering Wheel Heating Control Module (UVD with Z75)
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 13235945
- Service Connector: 88988507
- Description: 2 F 0.64 Micro-Power Quadlok Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
OG |
5883 |
Heated Steering Wheel Switch Signal |
I |
- |
| 2 |
0.35 |
PK |
5884 |
Heated Steering Wheel Switch LED Control |
I |
- |
