K29 Seat Heating Control Module X2 (KA1)
|
|

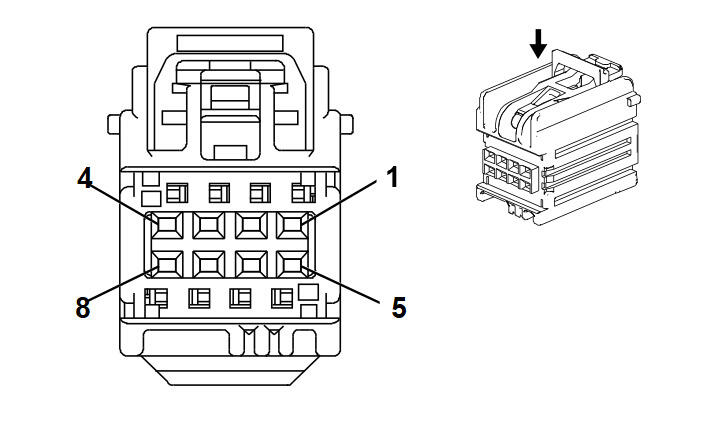

Connector Part Information
- Harness Type: Passenger Seat Cushion
- OEM Connector: 13518475
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F YESC Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
L-GN/L-BU |
6133 |
Local Interconnect Network Serial Data Bus 2 |
I |
- |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
