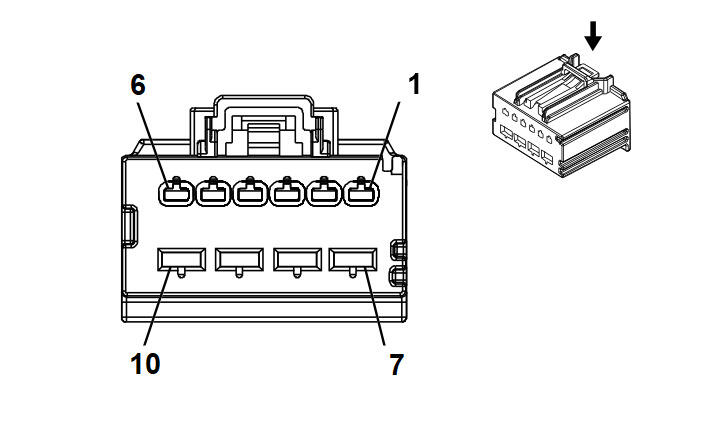

K29 Seat Heating Control Module X1 (KA1)
|
|
Connector Part Information
- Harness Type: Passenger Seat Cushion
- OEM Connector: 31372-1000
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F 1.5, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD/L-GN |
6140 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.75 |
WH/BN |
2481 |
Passenger Heated Back Element Control |
I |
- |
| 4 |
0.75 |
BN/L-BU |
2479 |
Passenger Heated Seat Element Control |
I |
- |
| 5 |
0.75 |
BN |
2432 |
Driver Heated Back Element Control |
I |
- |
| 6 |
0.75 |
BN/VT |
2077 |
Driver Heated Seat Element Control |
I |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.75 |
BK |
1250 |
Ground |
II |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.75 |
RD/L-GN |
5140 |
Battery Positive Voltage |
II |
- |
