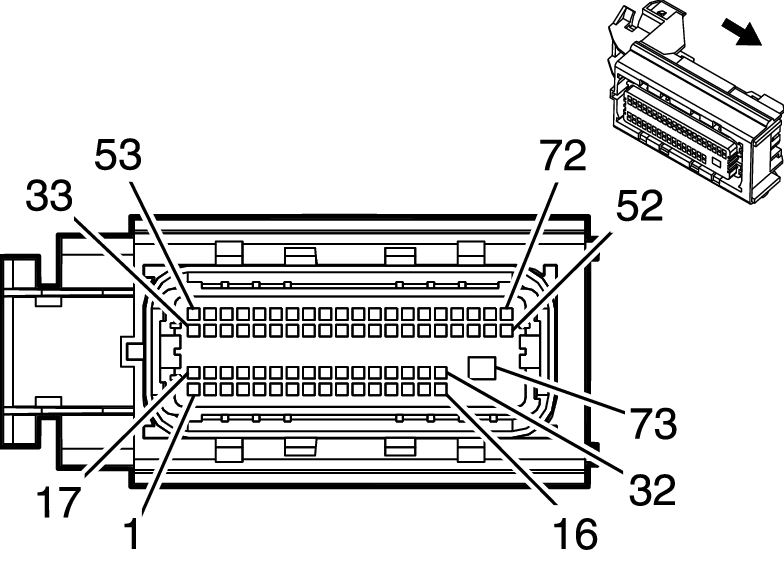

K20 Engine Control Module X3 (L96) X3
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575812 | J-35616-64B | J-38125-12A | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | L-GN/WH | 5007 | Reverse Switch Signal | I | - |
| 2-9 | - | - | - | Not Occupied | - | - |
| 10 | 0.5 | L-GN/D-BU | 428 | EVAP Canister Purge Solenoid Control | I | - |
| 11-15 | - | - | - | Not Occupied | - | - |
| 16 | 0.5 | WH/BN | 3223 | Heated Oxygen Sensor Heater Low Control Bank 2 Sensor (2) | I | - |
| 17 | 0.5 | GY | 23 | Generator Field Duty Cycle Signal | I | - |
| 18-21 | - | - | - | Not Occupied | - | - |
| 22 | 0.5 0.5 |
BK/GY BK/BN |
6110 5360 |
Clutch Apply Sensor Low Reference Brake Apply Sensor Low Reference |
I | M2P, MQ7 or MXW MYC |
| 23-26 | - | - | - | Not Occupied | - | - |
| 27 | 0.5 | BK/L-GN | 6281 | Fuel Level Sensor Low Reference | I | - |
| 28 | 0.5 | GY/RD | 2704 | Manifold Absolute Pressure Sensor 5 Volt Reference | I | - |
| 29 | 0.5 | BK/L-GN | 469 | Manifold Absolute Pressure Sensor Low Reference | I | - |
| 30 | 0.5 | BK/BN | 2761 | Coolant Temperature Sensor Low Reference | I | - |
| 31 | - | - | - | Not Occupied | - | - |
| 32 | 0.5 | GY/WH | 3122 | Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (2) | I | - |
| 33-37 | - | - | - | Not Occupied | - | - |
| 38 | 0.5 0.5 |
WH GY/RD |
5359 6109 |
Brake Apply Sensor Supply Voltage Clutch Apply Sensor Voltage Reference |
I | MYD MQ7 |
| 39-42 | - | - | - | Not Occupied | - | - |
| 43 | 0.5 | YE/RD | 2709 | Fuel Tank Pressure Sensor 5 Volt Reference | I | - |
| 44 | 0.5 | D-BU/WH | 1937 | Secondary Fuel Level Sensor Signal | I | - |
| 45 | 0.5 | L-GN/WH | 432 | Manifold Absolute Pressure Sensor Signal | I | - |
| 46 | 0.5 | D-BU | 410 | Engine Coolant Temperature Sensor Signal | I | - |
| 47 | - | - | - | Not Occupied | - | - |
| 48 | 0.5 | VT/WH | 821 | Vehicle Speed Sensor Signal | I | - |
| 49 | 0.5 | BK/L-GN | 822 | Vehicle Speed Sensor Low Reference | I | - |
| 50-54 | - | - | - | Not Occupied | - | - |
| 55 | 0.5 | BN/WH | 6354 | Output Speed High (Replicated TOS) Input Signal | I | - |
| 56-57 | - | - | - | Not Occupied | - | - |
| 58 | 0.5 0.5 |
YE D-BU/YE |
6111 5361 |
Clutch Apply Sensor Signal Brake Apply Sensor Signal |
I | M2P, MQ7 or MXW MYC |
| 59-62 | - | - | - | Not Occupied | - | - |
| 63 | 0.5 | D-BU/WH | 890 | Fuel Tank Pressure Sensor Signal | I | - |
| 64 | 0.5 | D-BU/VT | 1589 | Primary Fuel Level Sensor Signal | I | - |
| 65 | 0.5 | VT/L-GN | 3220 | Heated Oxygen Sensor High Signal Bank 2 Sensor (2) | I | - |
| 66 | 0.5 | YE/D-BU | 3221 | Heated Oxygen Sensor Low Signal Bank 2 Sensor (2) | I | - |
| 67 | 0.5 | VT/D-BU | 3120 | Heated Oxygen Sensor High Signal Bank 1 Sensor (2) | I | - |
| 68 | 0.5 | WH/YE | 3121 | Heated Oxygen Sensor Low Signal Bank 1 Sensor (2) | I | - |
| 69-73 | - | - | - | Not Occupied | - | - |
