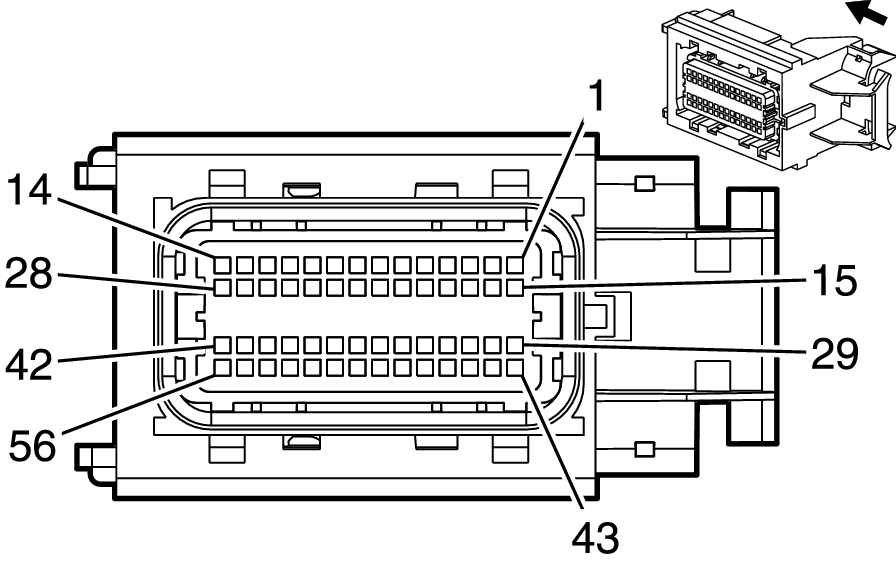

K20 Engine Control Module X1 (L96)

GM4068000
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13820449
  • Service Connector: 19329930
  • Description: 56-Way F 0.64 I Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13575812 J-35616-64B (LT BU) J-38125-213 Not Required Not Required Not Required Not Required
Pin Size Color Circuit Function Terminal Type ID Option
1 - - - Not Occupied - -
2 0.5 L-GN/WH 1162 Accelerator Pedal Position Signal (2) I -
3 0.5 L-GN/WH 492 Mass Air Flow Sensor Signal I -
4 0.5 GY/BK 1694 Four Wheel Drive Low Signal I -
5 0.5 YE/WH 1695 Four Wheel Drive Wheel Lock Indicator Control I -
6 - 9 - - - Not Occupied - -
10 0.5 YE/WH 1161 Accelerator Pedal Position Signal (1) I -
11 0.5 YE/WH 3200 Throttle Inlet Absolute Pressure Sensor Signal I -
12 0.5 L-GN 380 A/C Refrigerant Pressure Sensor Signal I -
13 0.5 BK/BN 5514 A/C Refrigerant Pressure Sensor Low Reference I -
14 0.5 YE/D-BU 1465 Secondary Fuel Pump Relay Control I -
15 - - - Not Occupied - -
16 0.5 BN/RD 1274 Accelerator Pedal Position 5 Volt Reference (2) I -
17 - - - Not Occupied - -
18 0.5 VT/YE 5985 Accessory Wakeup Serial Data I -
19 0.5 VT/L-GN 439 Run/Crank Ignition 1 Voltage I -
20 0.5 RD/BN 440 Battery Positive Voltage I -
21 - 23 - - - Not Occupied - -
24 0.5 WH/RD 1164 Accelerator Pedal Position 5 Volt Reference (1) I -
25 0.5 WH/RD 3201 Throttle Inlet Absolute Pressure Sensor 5 Volt Reference I -
26 0.5 BN/RD 2700 A/C Pressure Sensor 5 Volt Reference I -
27 0.5 YE/BK 625 Starter Enable Relay Control I -
28 0.5 L-GN/GY 465 Fuel Pump Primary Relay Control I -
29 0.5 D-BU 2500 High Speed GMLAN Serial Data (+) (1) I -
30 0.5 BK/PU 1272 Accelerator Pedal Position Low Reference (2) I -
31 0.5 BK/PU 2760 Intake Air Temperature Sensor Low Reference I -
32 - - - Not Occupied - -
33 0.5 WH/D-BU 6311 Cruise/ETC/TCC Brake Signal I -
34 0.5 WH/GY 1786 Transmission Park/Neutral Signal (1) I -
35 - 37 - - - Not Occupied - -
38 0.5 BK/D-BU 1271 Accelerator Pedal Position Low Reference (1) I -
39 0.5 WH/YE 3202 Throttle Inlet Absolute Pressure Sensor Low Reference I -
40 0.5 YE 5991 Powertrain Relay Coil Control I -
41 - 42 - - - Not Occupied - -
43 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1) I -
44 - - - Not Occupied - -
45 0.5 WH/D-BU 6289 Induction Air Temperature Sensor Signal I -
46 - - - Not Occupied - -
47 0.5 BN 25 Charge Indicator Control I -
48 - 51 - - - Not Occupied - -
52 0.5 BN/WH 419 Check Engine Indicator Control I -
53 0.5 WH/GY 459 A/C Compressor Clutch Relay Control I -
54 - 55 - - - Not Occupied - -
56 0.5 WH 1310 EVAP Canister Vent Solenoid Control I -
