Rear Side Door Window Inner Sealing Strip Replacement (Long Wheelbase)

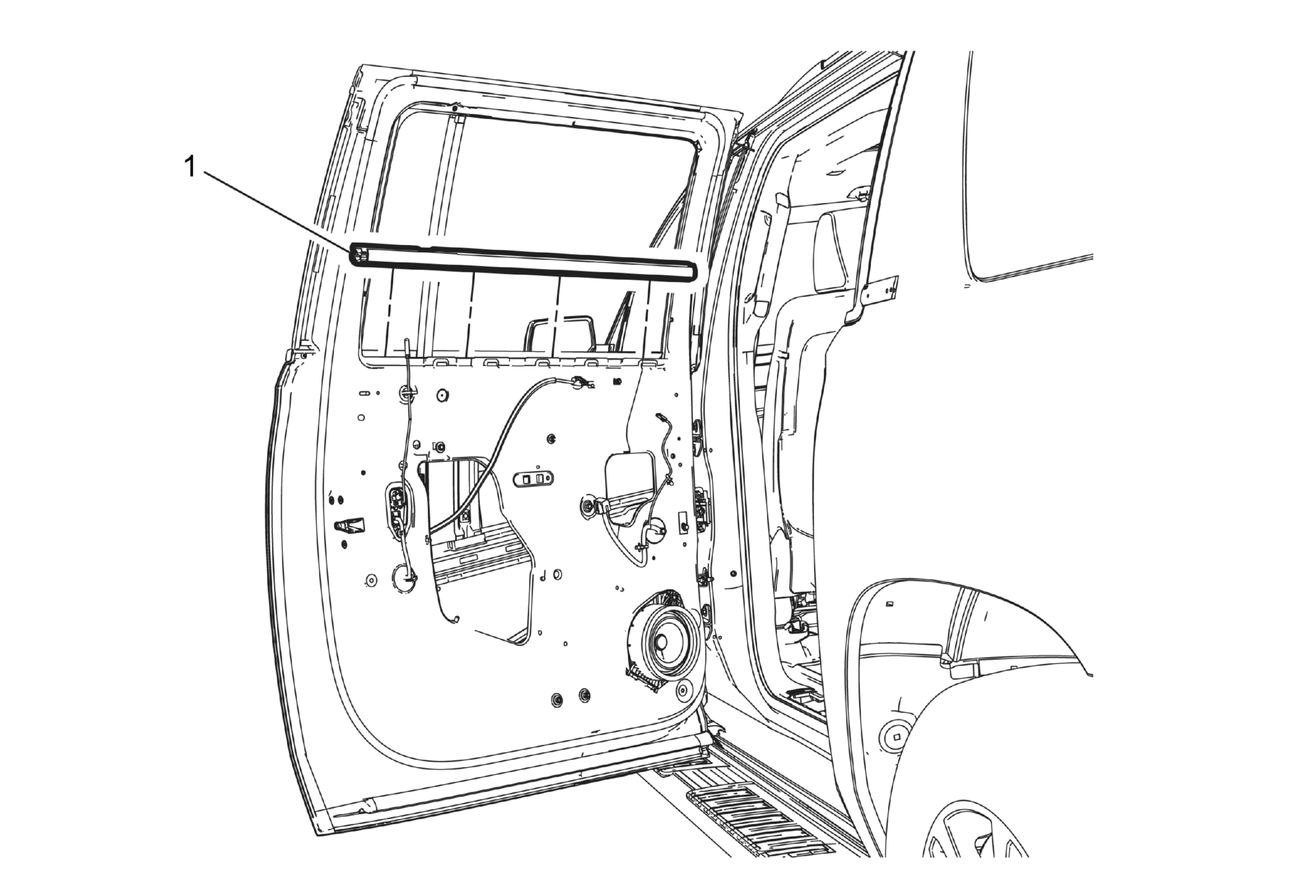

Fig 1: Rear Side Door Window Inner Sealing Strip(Long Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement (Chevrolet, GMC)Rear Side Door Trim Replacement (Cadillac) .
1	Rear Side Door Inner Belt Sealing Strip Procedure Lifting upward on the sealing strip end in order to unhook it from the door flange. Install the sealing strip to the flange of the door and push downward until fully seated. NOTE: Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

Rear Side Door Inner Belt Sealing Strip

Procedure

Lifting upward on the sealing strip end in order to unhook it from the door flange.
Install the sealing strip to the flange of the door and push downward until fully seated.

NOTE:

Inspect the door window for proper operation before installing the door trim.
