Power, Ground, Serial Data and Indicators (1 of 2)

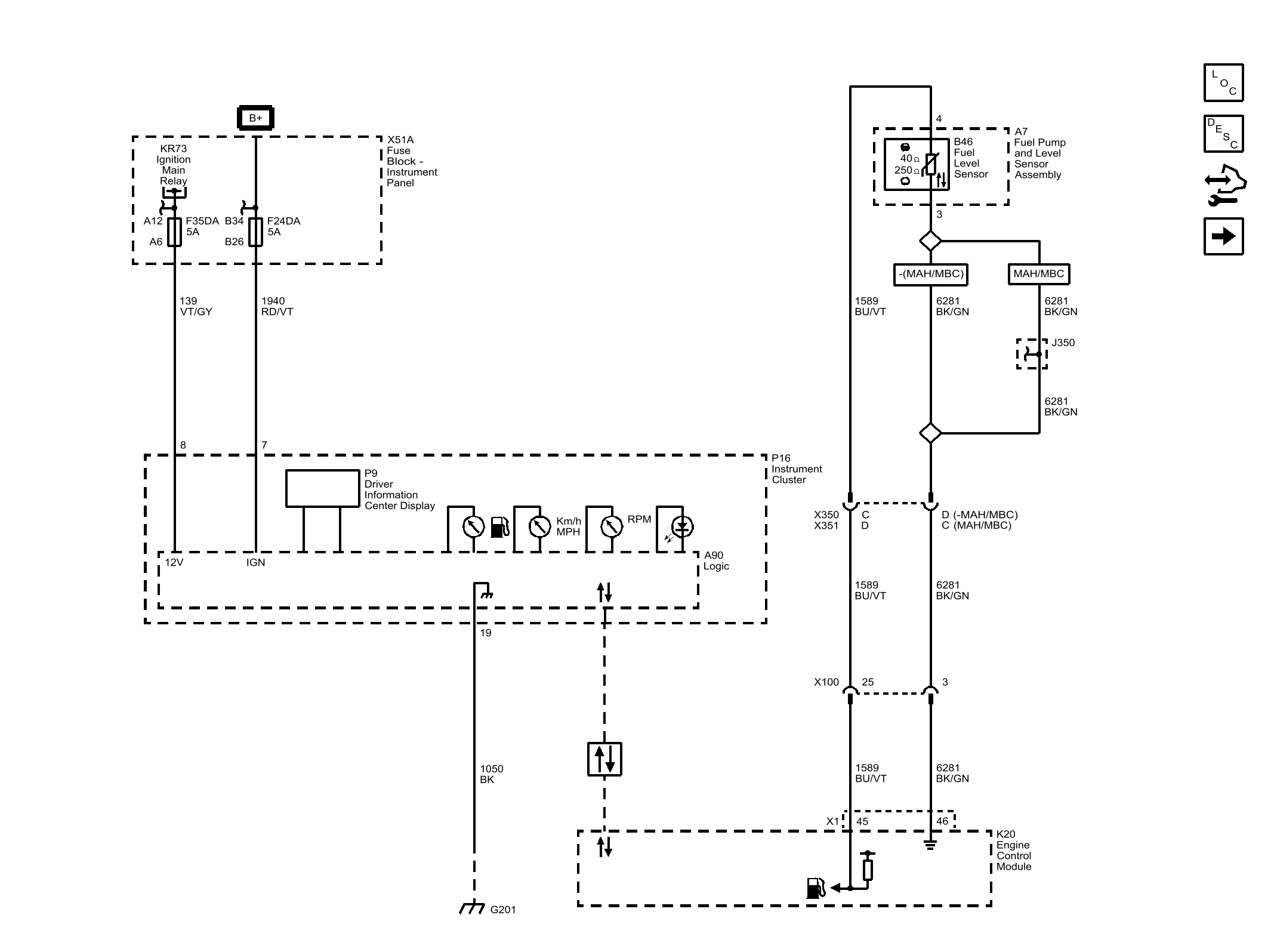

Fig 1: Power, Ground, Serial Data and Indicators (1 of 2)

GM4086292

Courtesy of GENERAL MOTORS COMPANY
