Ignition and Start Switch Replacement

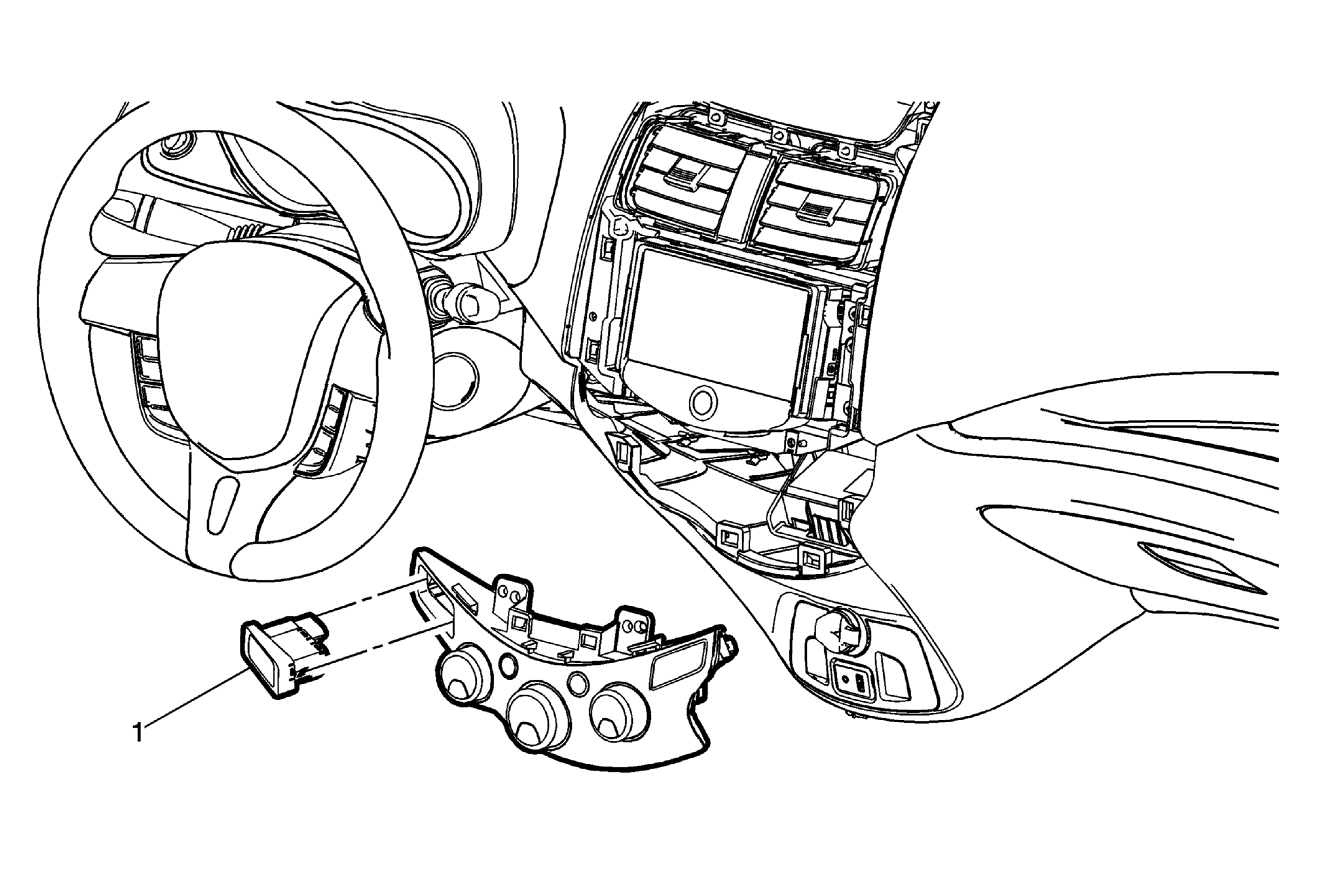

Fig 1: Ignition And Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the auxiliary heater and air conditioning control. Refer to Auxiliary Heater and Air Conditioning Control Replacement .
1	Ignition and Start Switch Procedure  Depress tabs on switch to remove from the control.
