Liftgate Trim Finish Panel Replacement

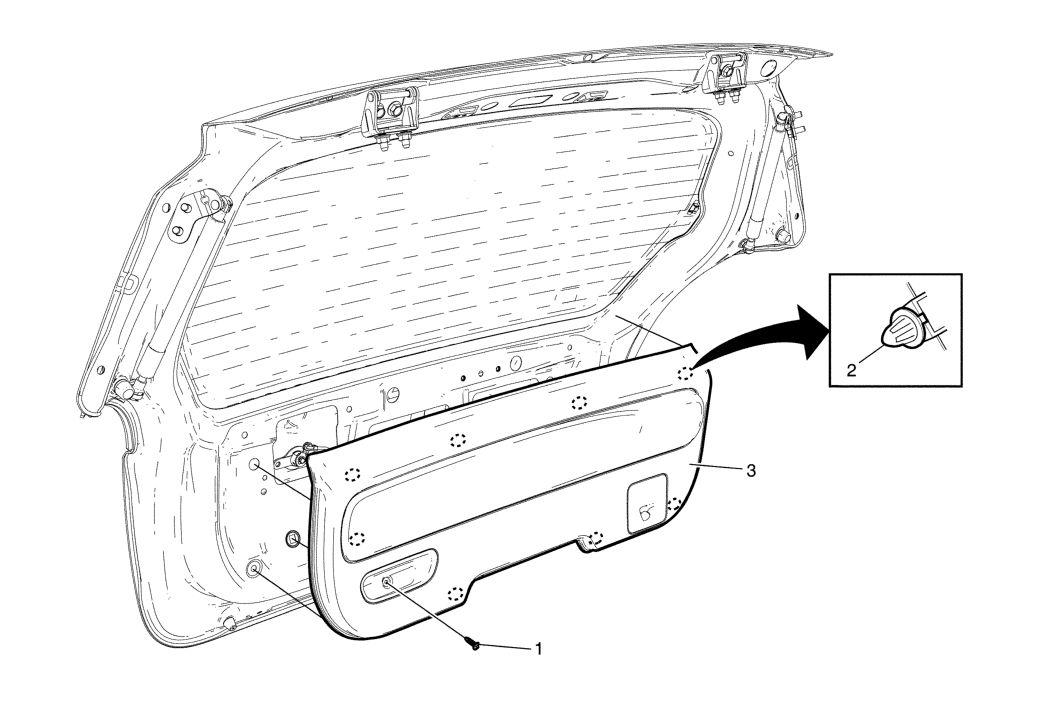

Fig 1: Liftgate Trim Panel Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate Trim Finish Panel Fastener CAUTION: Refer to Fastener Caution .
2	Liftgate Trim Finish Panel Clip (Qty: 8)
3	Liftgate Trim Finish Panel Assembly
