Liftgate Strut Replacement

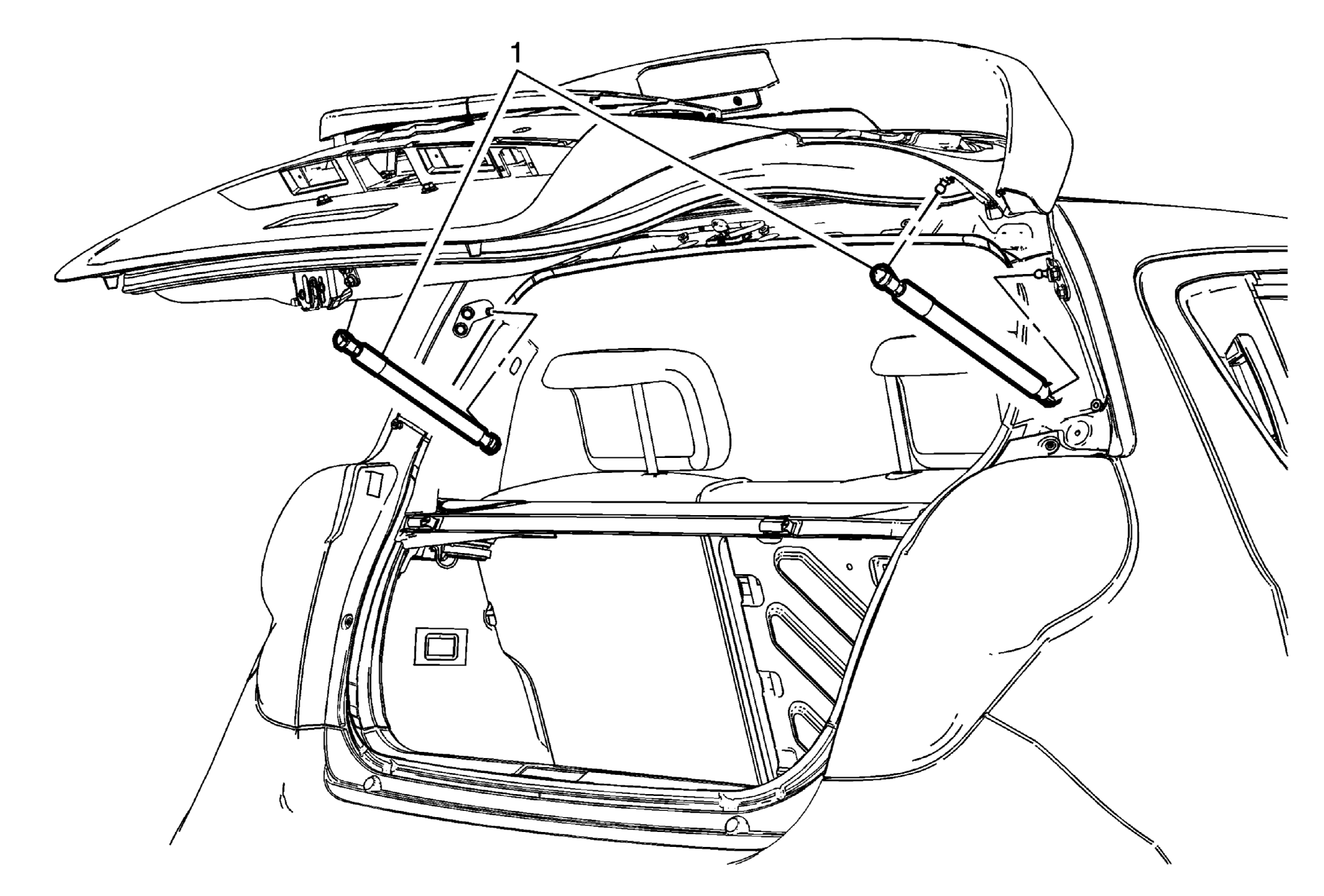

Fig 1: Liftgate Strut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate Strut (Qty 2) WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. CAUTION: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Procedure Release the locking tabs on the strut. Ensure the clip is fully seated when the strut is reinstalled. If the clip cannot be fully seated, a new strut should be installed. Ensure the strut shaft is pointing toward the roof structure.

Callout

Component Name

Liftgate Strut (Qty 2)

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

CAUTION:

Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

Procedure

Release the locking tabs on the strut.
Ensure the clip is fully seated when the strut is reinstalled. If the clip cannot be fully seated, a new strut should be installed.
Ensure the strut shaft is pointing toward the roof structure.
