Liftgate Adjustment

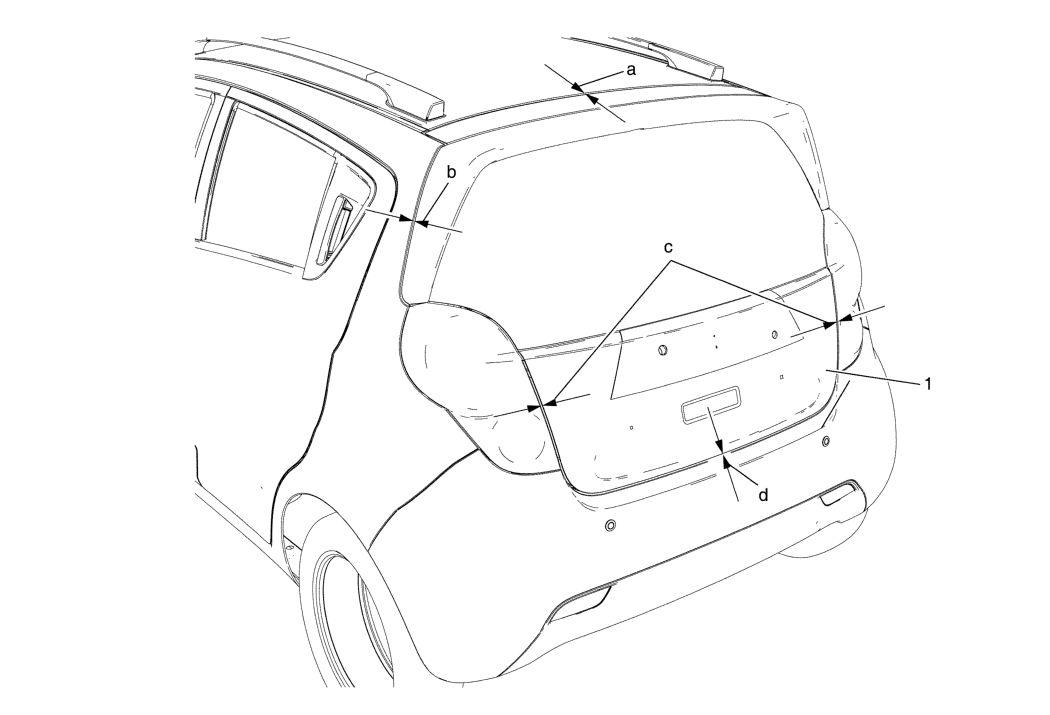

Fig 1: Liftgate

GM2309112

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Liftgate

CAUTION:

Refer to Fastener Caution .

Procedure

Loosen the 4 liftgate hinge bolts to adjust the liftgate.
Adjust the liftgate in order to obtain an even gap between the liftgate and the roof, the quarter outer panel, the tail lamp and rear bumper fascia and so that the liftgate is flush with the roof, the quarter outer panel, the tail lamp and rear bumper fascia.

Adjustment:

Liftgate to roof (a) 6.0 mm ± 1.0 mm (0.24 in ± 0.04 in)
Liftgate to quarter outer panel (b) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in)
Liftgate to tail lamp (c) 3.5 mm ± 1.5 mm (0.14 in ± 0.06 in)
Liftgate to rear bumper fascia (d) 5.0 mm ± 1.0 mm (0.20 in ± 0.04 in)

Tighten
28 N.m (15 lb ft)
