Hood Insulator Replacement

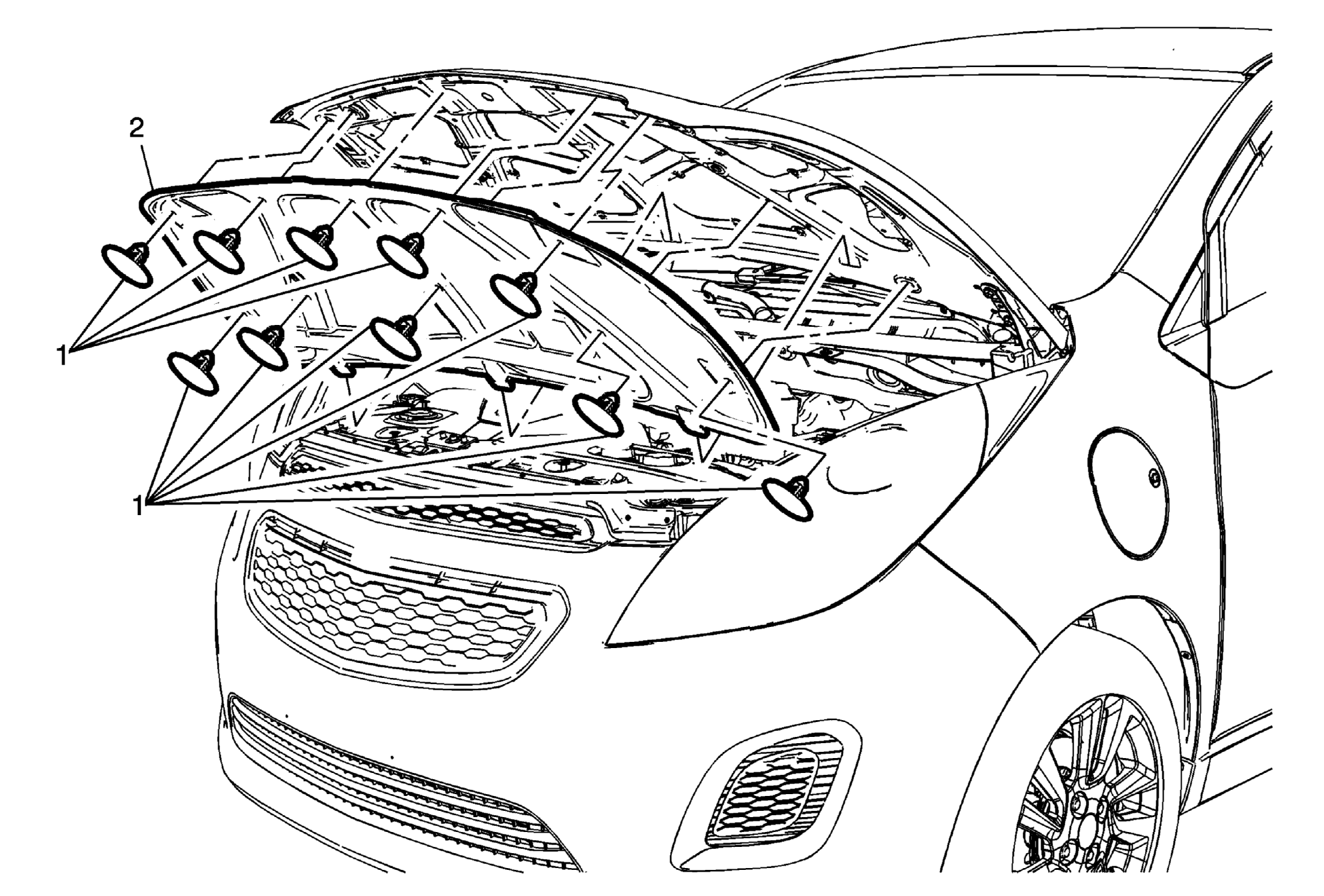

Fig 1: Hood Insulator
GM2916683Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Insulator Plastic Retainer (Qty: 10)
2 Hood Insulator
Procedure
Ensure the 3 integral tabs are secured to the hood.
