Plenum Front Panel Replacement

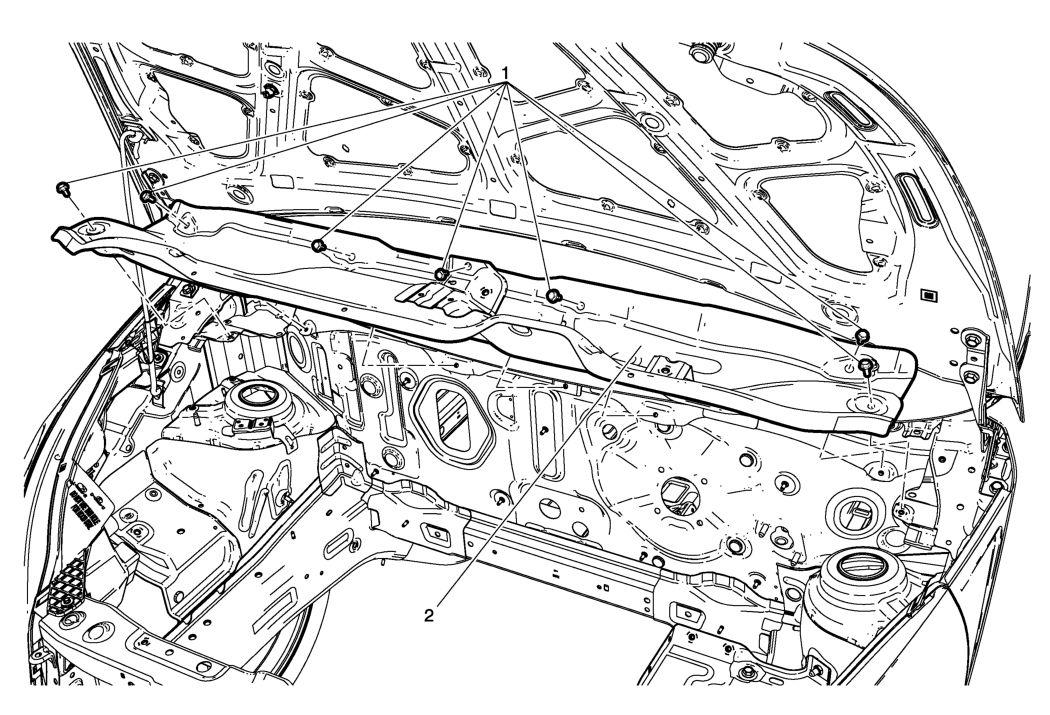

Fig 1: Plenum Lower Panel

GM2327731

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the windshield wiper arm. Refer to Windshield Wiper Arm Replacement .
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Remove the windshield wiper system module. Refer to Windshield Wiper System Module Replacement .

1

Plenum Lower Panel Bolt (Qty: 7)

CAUTION:

Refer to Fastener Caution .

Tighten
11.5 N.m (102 lb in)

2

Plenum Lower Panel
