Liftgate Hinge Replacement

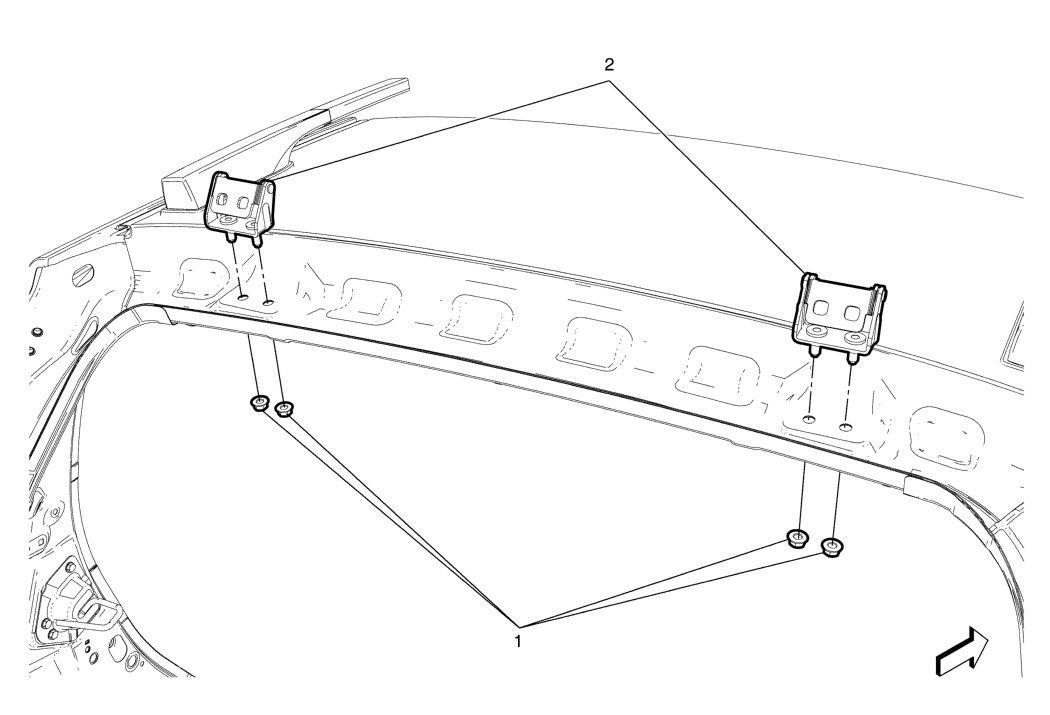

Fig 1: Liftgate Hinge
GM2309127Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the liftgate. Refer to Liftgate Replacement .
1 Liftgate Hinge Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Liftgate Hinge
