Hood Primary Latch Release Cable Replacement

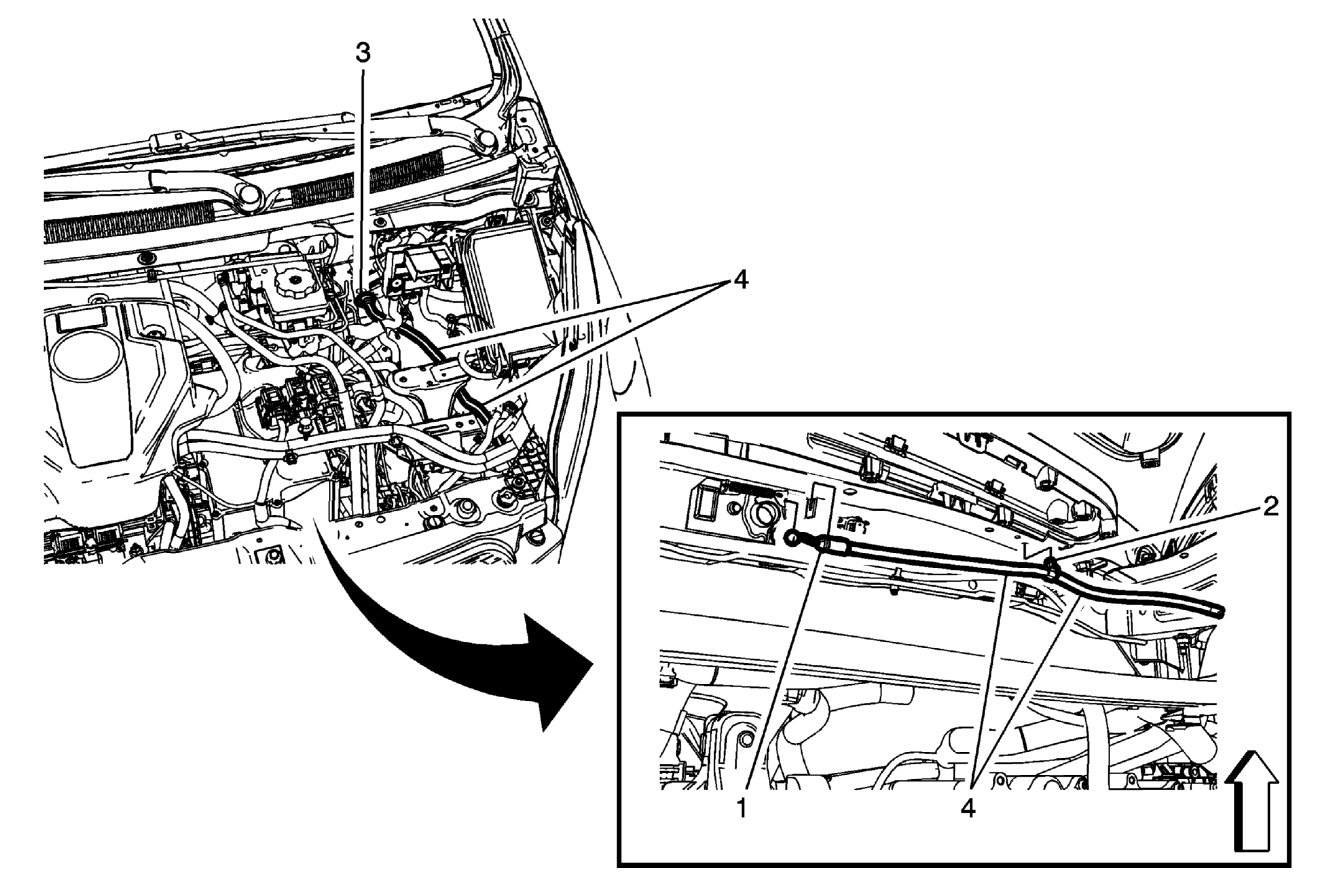

Fig 1: Hood Primary Latch Release Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the Front Compartment Front Sight Shield. Refer to Front Compartment Front Sight Shield Replacement . Remove the hood primary latch release cable handle. Refer to Hood Primary Latch Release Cable Handle Replacement .
1	Hood Primary Latch Cable Procedure Disconnect the hood primary latch release cable from the primary hood latch.
2	Hood Primary Latch Release Cable Retainer Procedure Disconnect the hood release cable retainers from the hood release cable.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure Disconnect the hood primary latch release cable from the hood latch cable handle.
