Front Fender Insulator Replacement

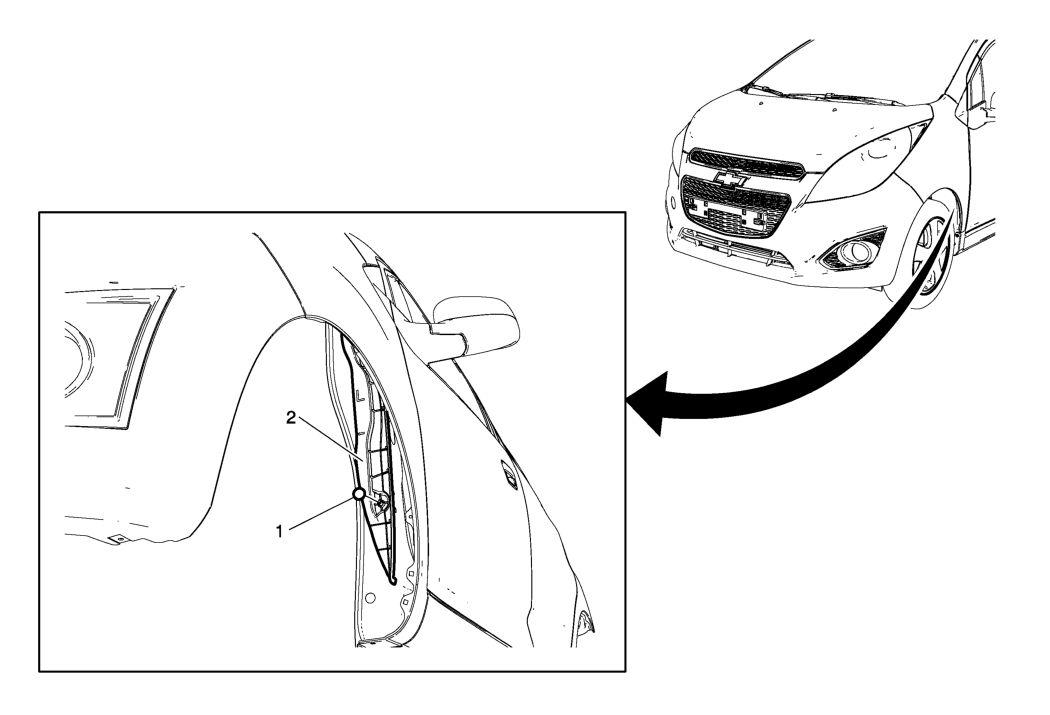

Fig 1: Front Fender Insulator
GM2852130Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front left hand or right hand wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Left Side , Front Wheelhouse Liner Replacement - Right Side .
1 Front Fender Insulator Retainer
2 Front Fender Insulator
