Camshaft Position Actuator Removal
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

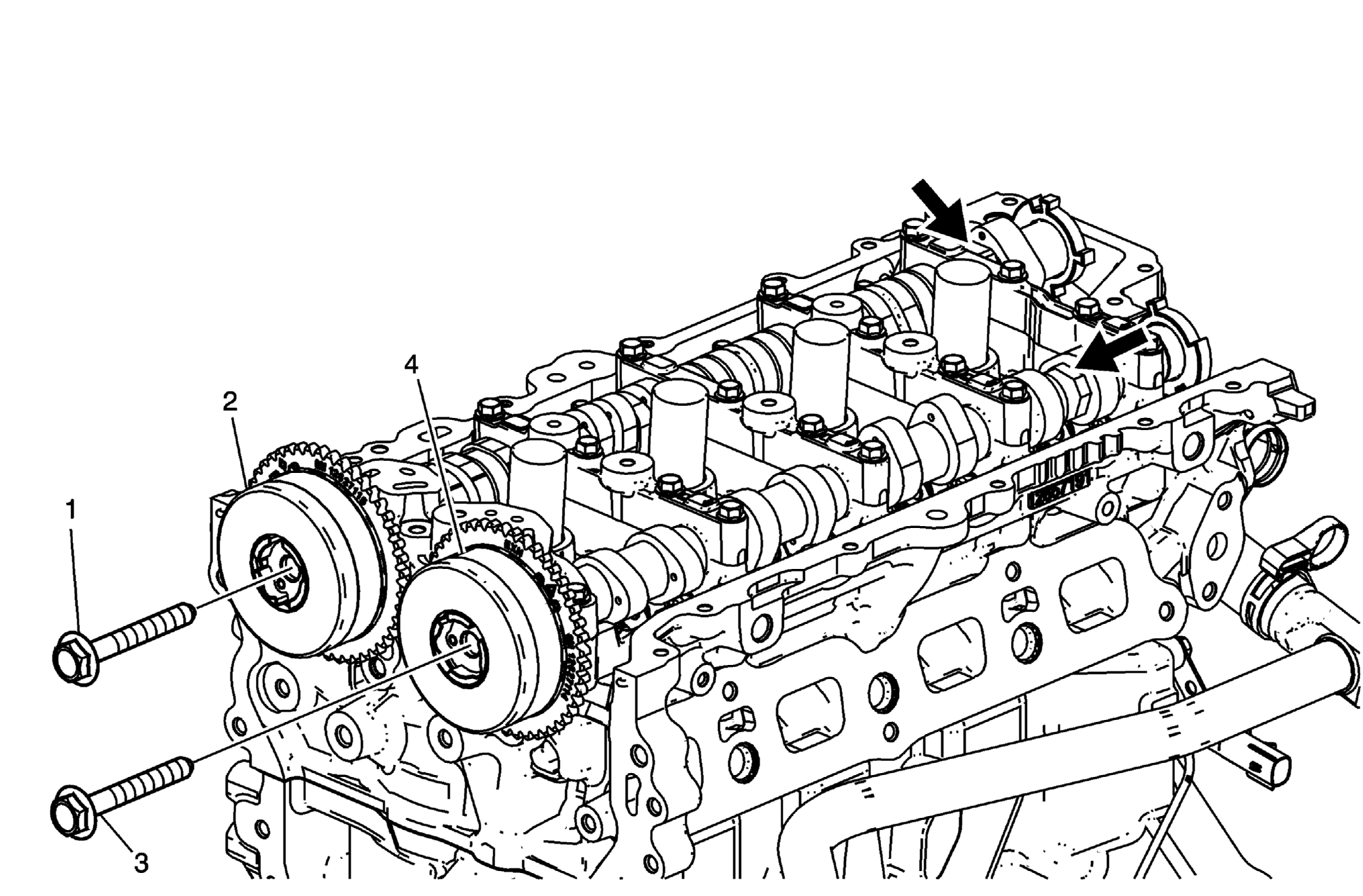

Courtesy of GENERAL MOTORS COMPANY Camshaft Position Actuator Removal
| Callout |
Component Name |
| 1 |
Intake Camshaft Position Actuator Bolt Procedure
- Install an open-end wrench to the camshaft flats located on the intake camshaft. Then install a wrench and socket to the camshaft actuator bolt. While holding the open-face wrench steady loosen the camshaft actuator bolt.
- Remove and discard the bolt.
|
| 2 |
Intake Camshaft Position Actuator |
| 3 |
Exhaust Camshaft Position Actuator Bolt Procedure
- Install an open-end wrench to the camshaft flats located on the exhaust camshaft. Then install a wrench and socket to the camshaft actuator bolt. While holding the open-face wrench steady loosen the camshaft actuator bolt.
- Remove and discard the bolt.
|
| 4 |
Exhaust Camshaft Position Actuator |
