Intake Manifold and Components
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

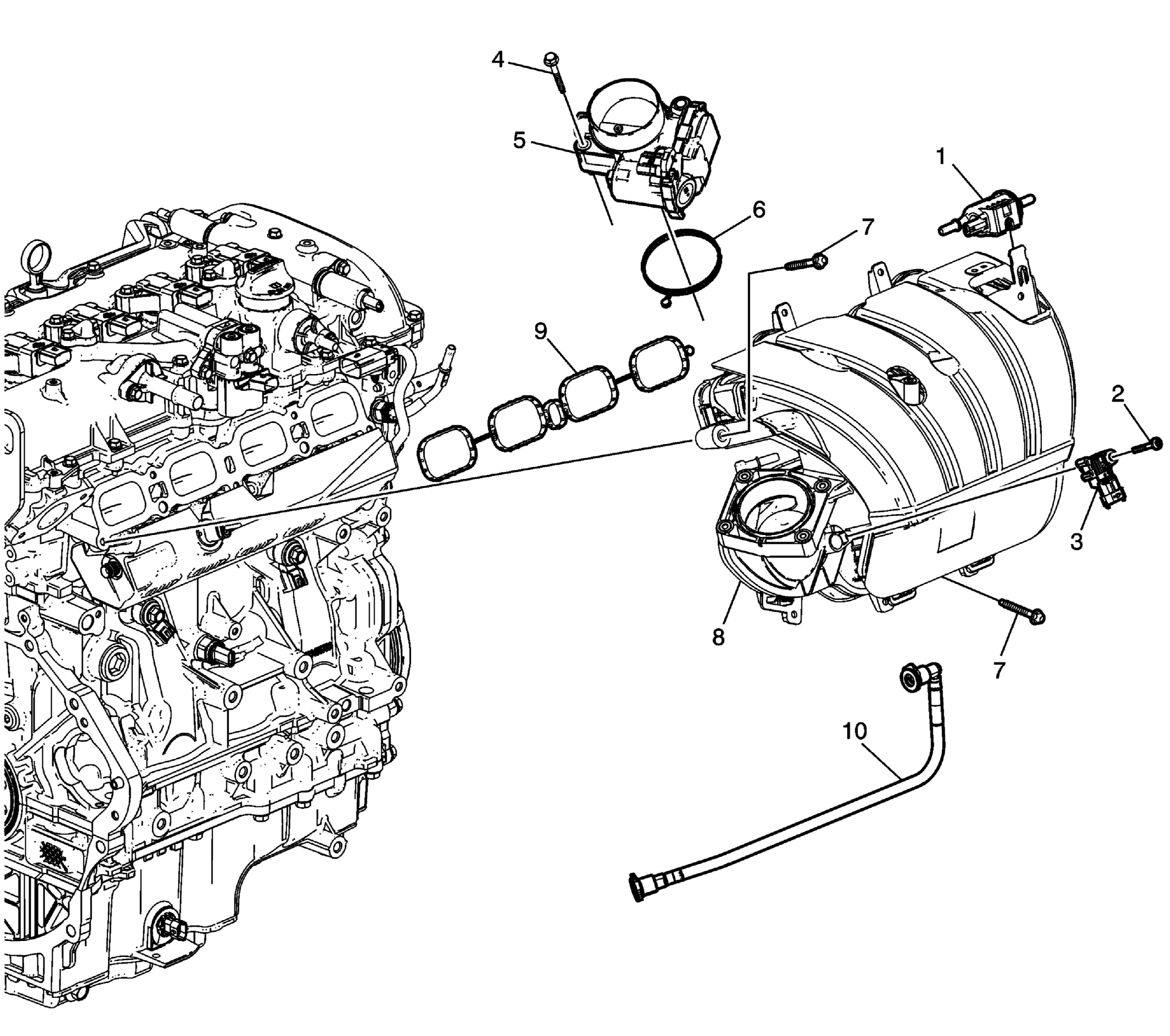

Intake Manifold and Components
| Callout | Component Name |
|---|---|
| 1 | EVAP Canister Valve |
| 2 | MAP Sensor Bolt |
| 3 | MAP Sensor |
| 4 | Throttle Body Bolts (Qty: 4) |
| 5 | Throttle Body |
| 6 | Throttle Body Seal
NOTE:
Discard the seal.
|
| 7 | Intake Manifold Bolts (Qty: 6) |
| 8 | Intake Manifold |
| 9 | Intake Manifold Gasket |
| 10 | Evap Canister Purge Tube Assembly |
