Engine Front Cover and Accessory Drive Belt Tensioner Removal

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

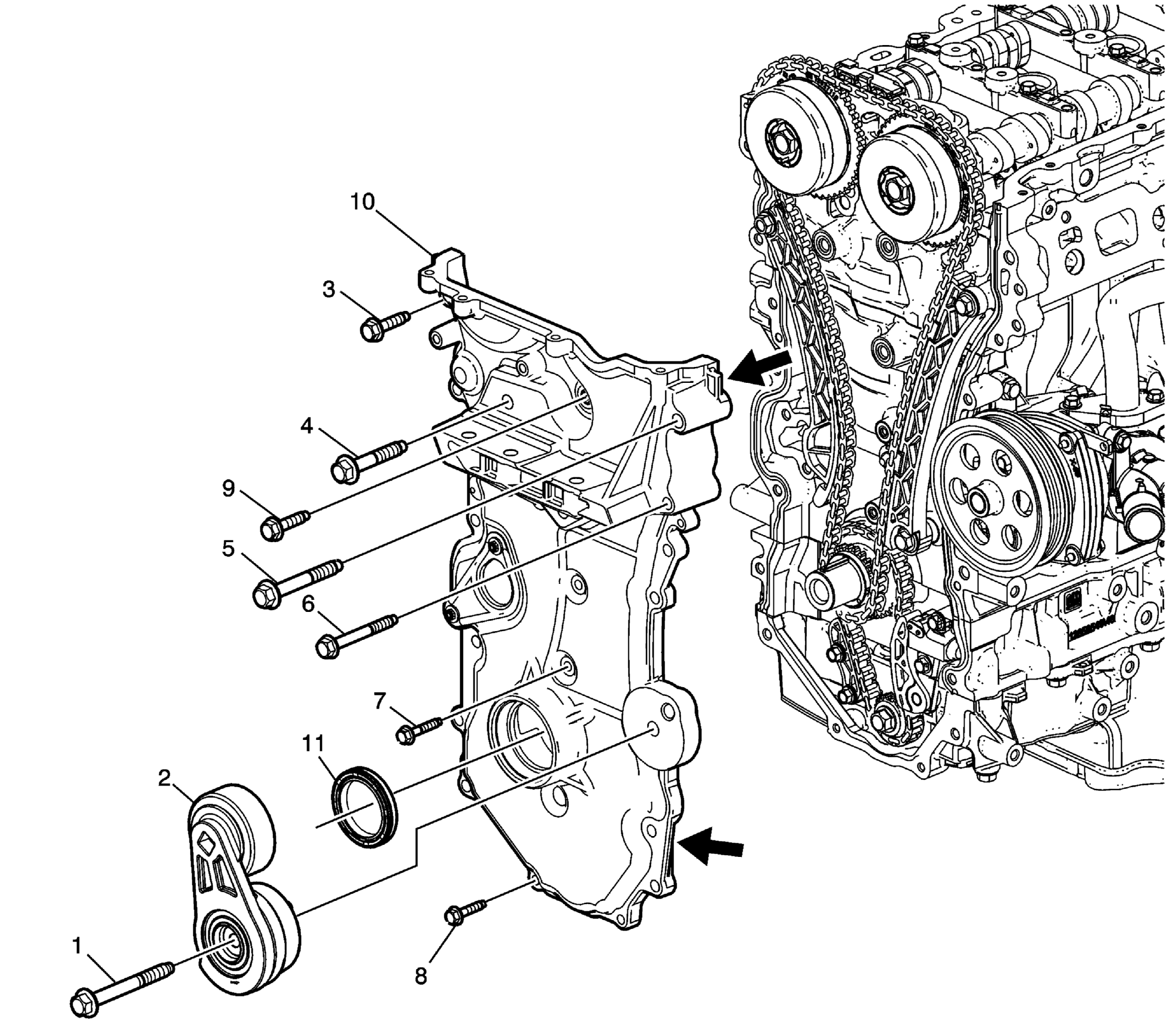

Fig 1: Engine Front Cover & Accessory Drive Belt Tensioner Components -- FWD

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accessory Drive Belt Tensioner Bolt
2	Accessory Drive Belt Tensioner
3	Engine Front Cover Bolts (Qty: 11)
4	Engine Front Cover Bolts (Qty: 2)
5	Engine Front Cover Bolt (Qty: 1)
6	Engine Front Cover Bolt (Qty: 1)
7	Engine Front Cover Bolts (Qty: 2)
8	Engine Front Cover Bolts (Qty: 2)
9	Engine Front Cover Bolt (Qty: 1)
10	Engine Front Cover Procedure Locate pry points to aid in loosening the cover. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Clean and Inspect the engine front cover mating surface.
11	Crankshaft Front Oil Seal
