Engine Coolant Air Bleed Pipe Removal
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

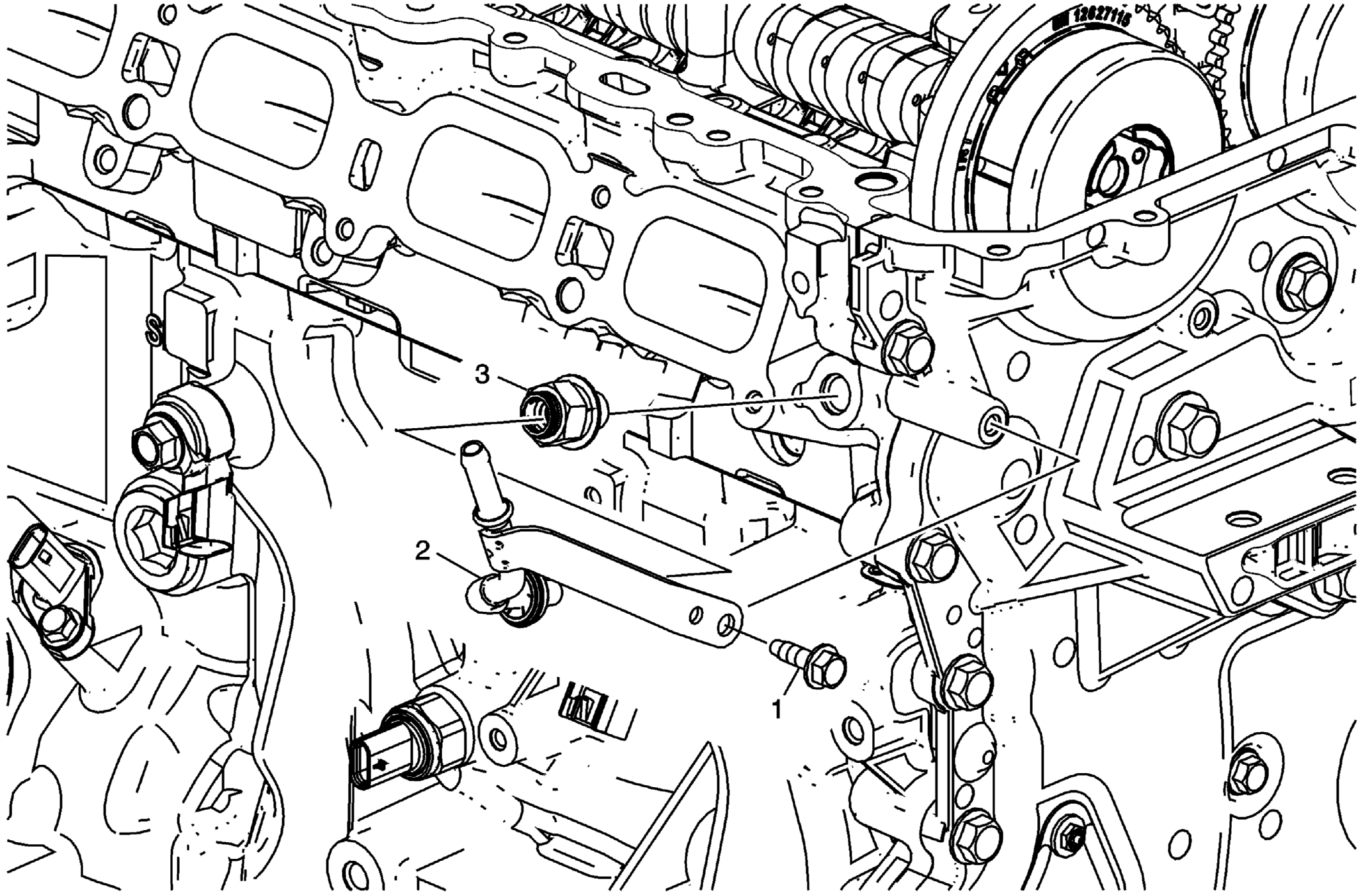

Courtesy of GENERAL MOTORS COMPANY Engine Coolant Air Bleed Pipe Removal
| Callout |
Component Name |
| 1 |
Engine Coolant Air Bleed Pipe Bracket Bolt |
| 2 |
Engine Coolant Air Bleed Pipe |
| 3 |
Engine Coolant Air Bleed Pipe Fitting |
