Engine Bleed Pipe and Fitting
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

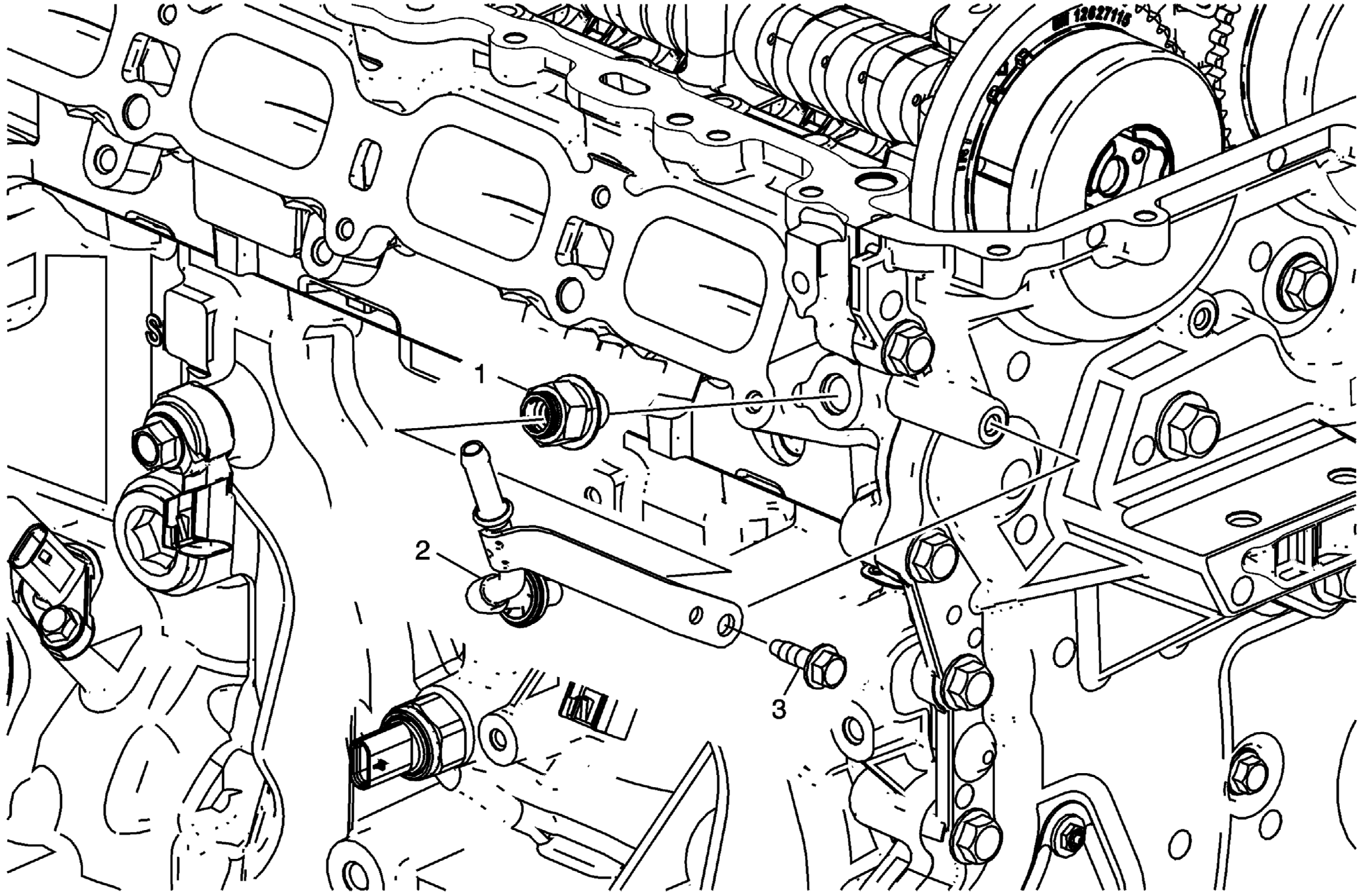

Engine Bleed Pipe and Fitting
| Callout | Component Name |
|---|---|
| 1 | Engine Coolant Air Bleed Pipe Fitting
CAUTION:
Refer to Component Fastener Tightening Caution
. Tighten 35 N.m (26 lb ft) |
| 2 | Engine Coolant Air Bleed Pipe |
| 3 | Engine Coolant Air Bleed Pipe Bolt Tighten 10 N.m (89 lb in) |
