Crankshaft Front Oil Seal and Engine Front Cover RTV Sealant
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

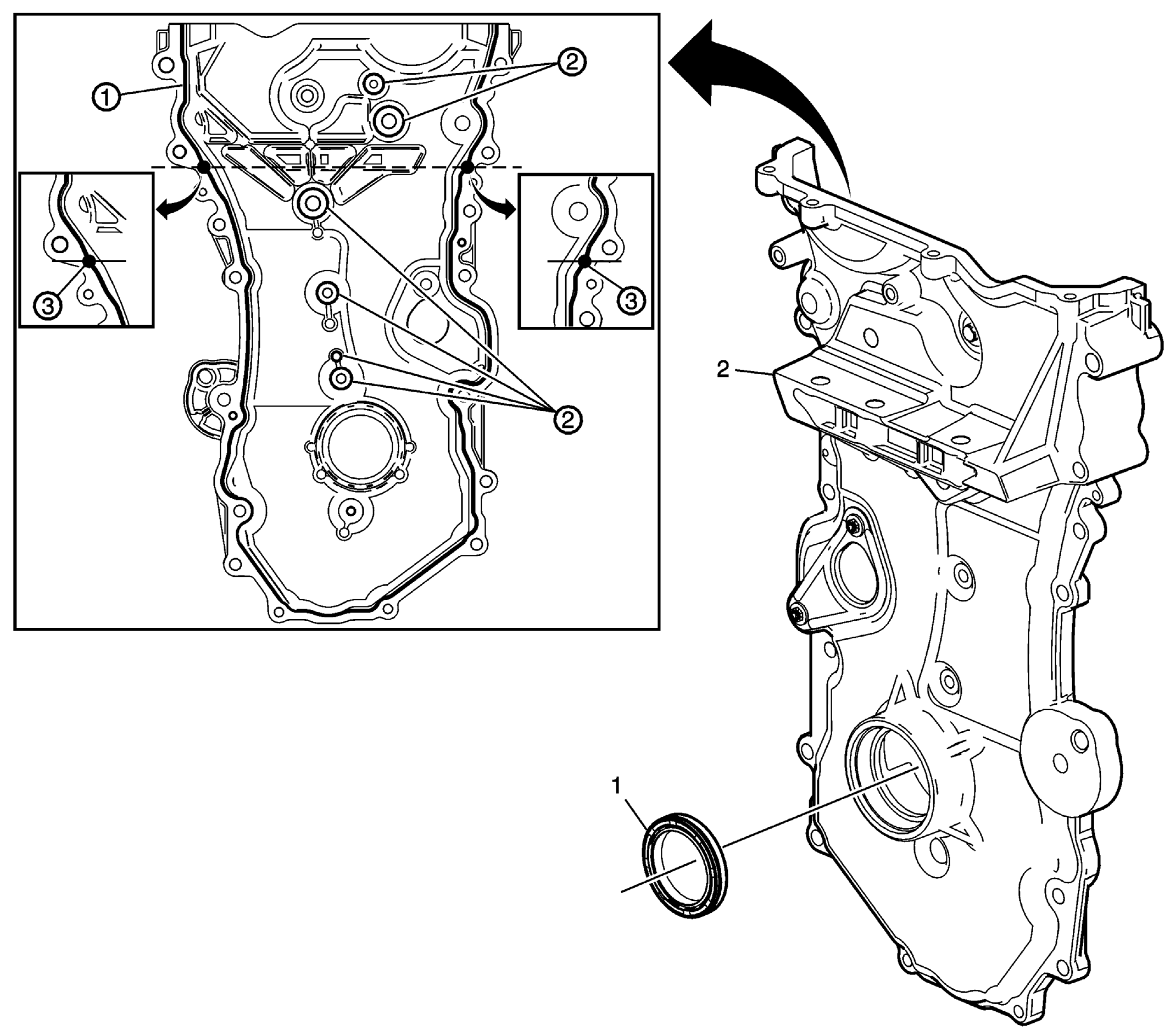

Courtesy of GENERAL MOTORS COMPANY Crankshaft Front Oil Seal and Engine Front Cover RTV Sealant
| Callout |
Component Name |
| 1 |
Crankshaft Front Oil Seal
Special Tools
EN-50820
Front Crankshaft Seal Installer
For equivalent regional tools, refer to Special Tools
. |
| 2 |
Engine Front Cover Procedure
- Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
NOTE:
- The engine front cover surface must be free of contamination prior to applying the sealer.
- Install and align the cover within 20 minutes of applying the sealer.
- The cover must be fastened to final torque specification within 60 minutes of applying the sealer.
- Apply sealer to the engine front cover in sequence. Refer to Adhesives, Fluids, Lubricants, and Sealers (LKW)Adhesives, Fluids, Lubricants, and Sealers (LTG)
. Apply a 5 mm bead of sealer directly in the flange of the engine front cover perimeter mating surface.
- Apply a 5 mm bead of sealer directly to the interior locations of the engine front cover.
NOTE:
Additional sealant is necessary to reduce the possibility of leakage where the cylinder head to engine block interface along the bead path flange on the front cover.
- Apply a 14 mm dab of sealant at the final locations.
|
