Cylinder Head Components
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

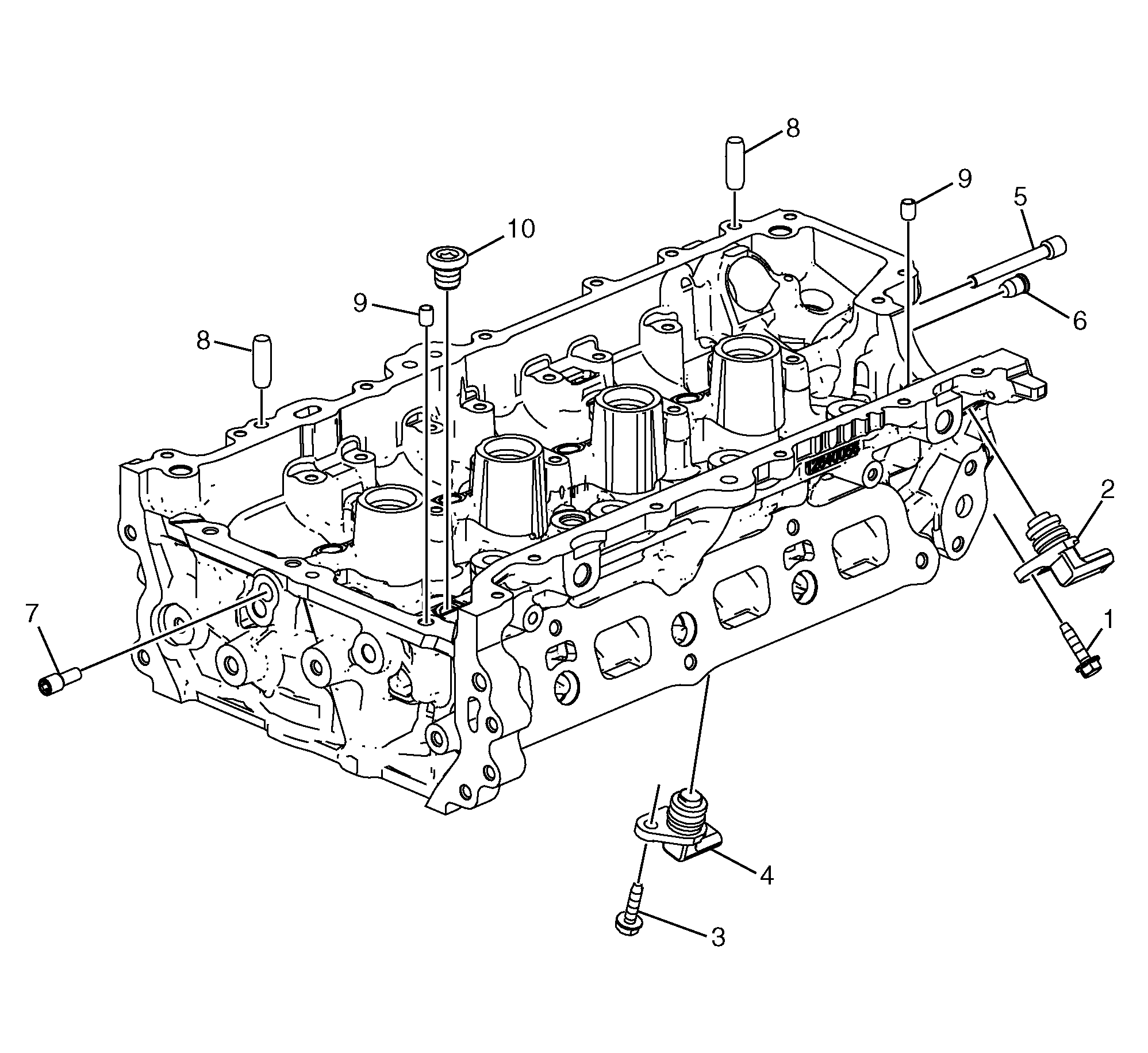

Cylinder Head Components
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 10 N.m (89 lb in) |
| 2 | Camshaft Position Sensor - Exhaust |
| 3 | Camshaft Position Sensor Bolt Tighten 10 N.m (89 lb in) |
| 4 | Camshaft Position Sensor - Intake |
| 5 | Cylinder Head Oil Gallery Plug |
| 6 | Cylinder Head Oil Gallery Plug
CAUTION:
Refer to Component Fastener Tightening Caution
. Tighten 40 N.m (30 lb ft) |
| 7 | Plug |
| 8 | Cylinder Head Oil Gallery Restrictor |
| 9 | Cylinder Head Oil Gallery Plug |
| 10 | Cylinder Head Oil Gallery Plug |
| 11 | Cylinder Head Locating Pin |
| 12 | Camshaft Bearing Lower Cap Locating Pin |
| 13 | Cylinder Head Core Hole Plug
NOTE:
Coat the plugs with sealer. Refer to Adhesives, Fluids, Lubricants and Sealers (LKW)
. Tighten 50 N.m (37 lb ft) |
