Vacuum Pump and Engine Lift Brackets
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

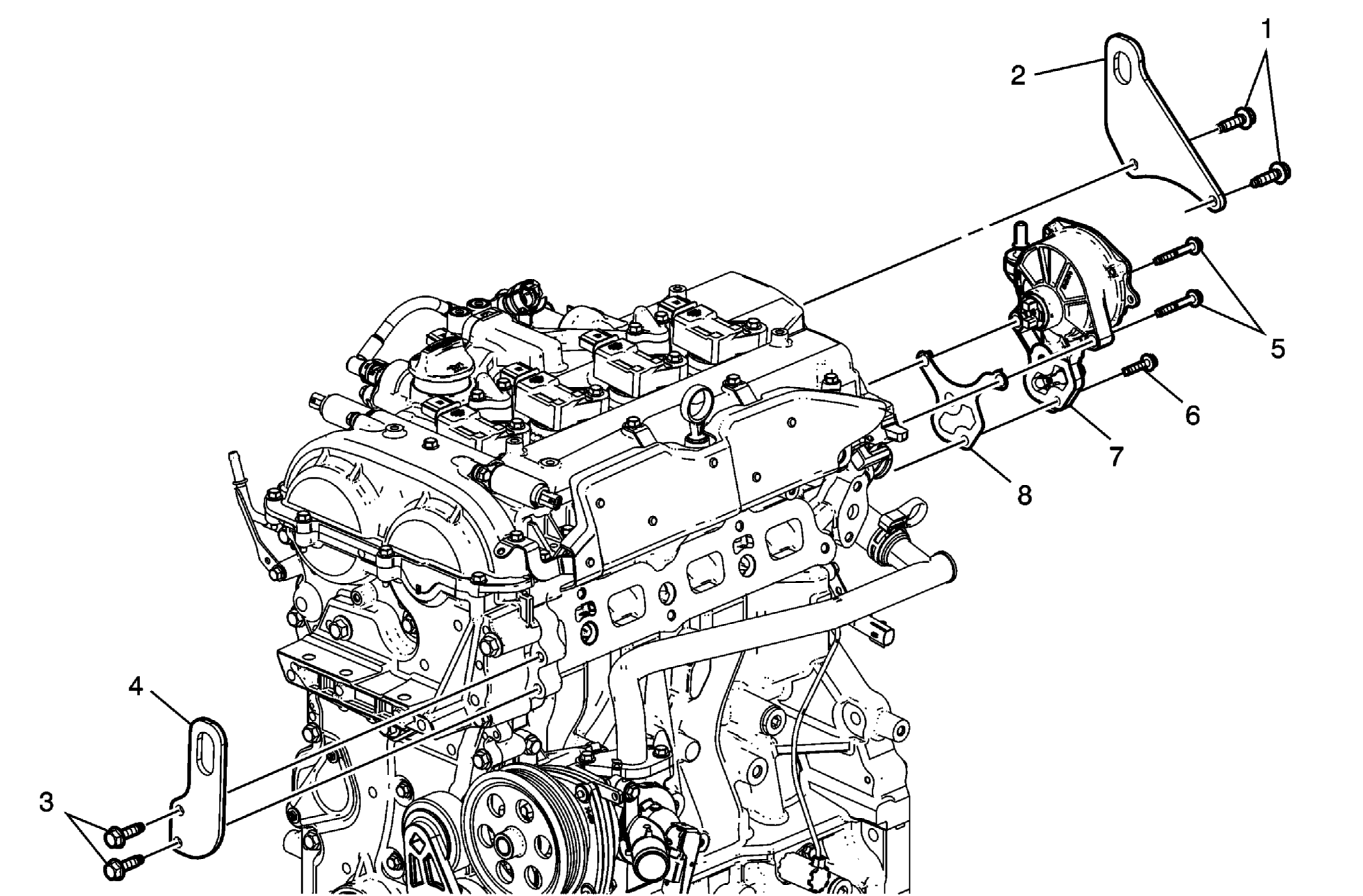

Vacuum Pump and Engine Lift Brackets
| Callout | Component Name |
|---|---|
| 1 | Rear Lift Bracket Bolt (Qty: 2) |
| 2 | Rear Lift Bracket |
| 3 | Front Lift Bracket Bolt (Qty: 2) |
| 4 | Front Lift Bracket |
| 5 | Vacuum Assembly Bolts (Qty: 2) |
| 6 | Vacuum Assembly Bolt (Qty: 1) |
| 7 | Vacuum Assembly |
| 8 | Vacuum Assembly Gasket
NOTE:
Discard the gasket.
|
