Camshaft Cover and Components
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

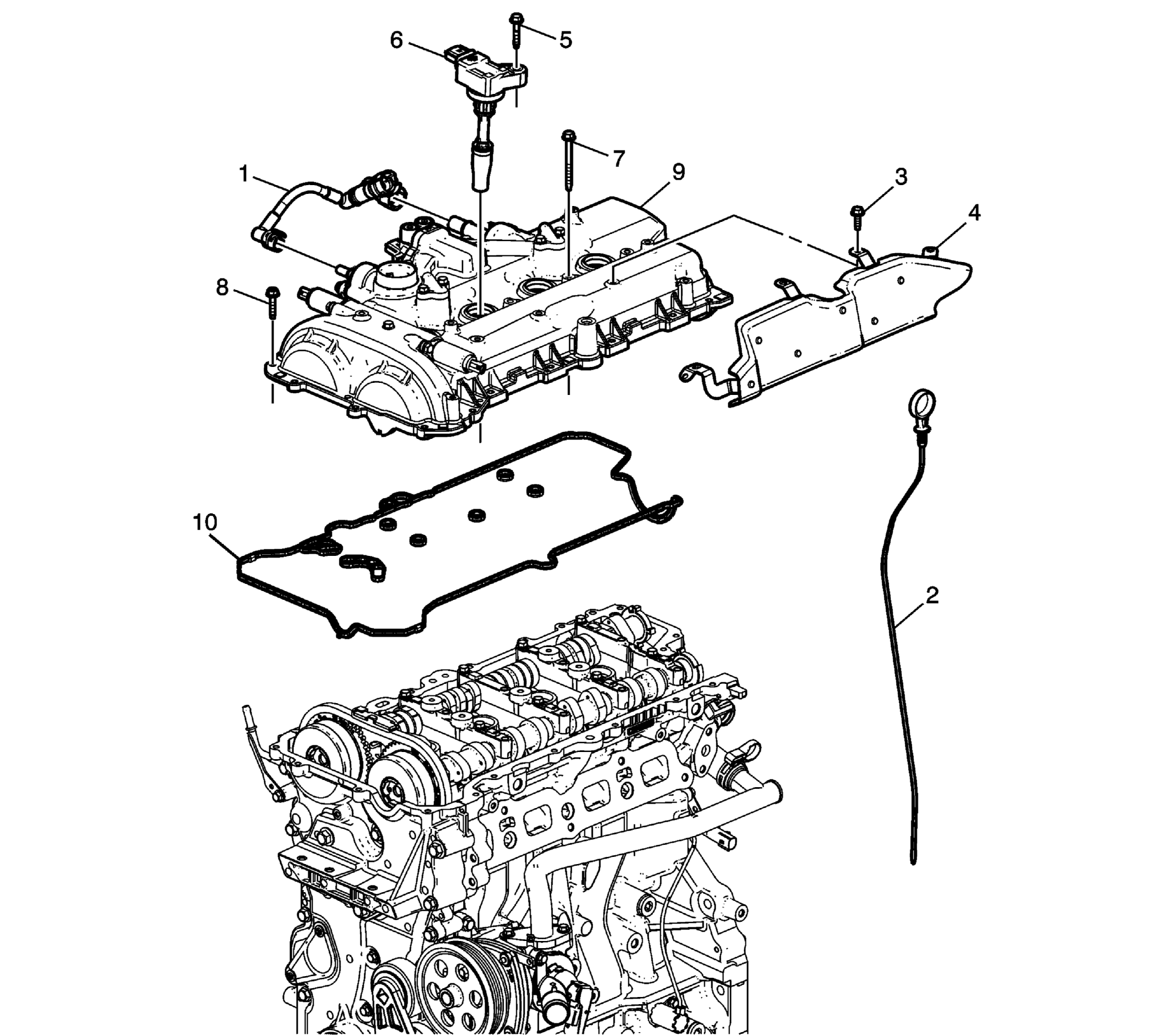

Camshaft Cover and Components
| Callout | Component Name |
|---|---|
| 1 | PCV Tube Assembly |
| 2 | Oil Level Indicator |
| 3 | Camshaft Cover Heat Shield Bolt (Qty: 4) |
| 4 | Camshaft Cover Heat Shield |
| 5 | Ignition Coil Bolt |
| 6 | Ignition Coil |
| 7 | Camshaft Cover Bolt (Qty: 4) |
| 8 | Camshaft Cover Bolt (Qty: 19) |
| 9 | Camshaft Cover |
| 10 | Camshaft Cover Gasket
NOTE:
Discard the gasket.
|
