Vacuum Pump and Engine Lift Brackets

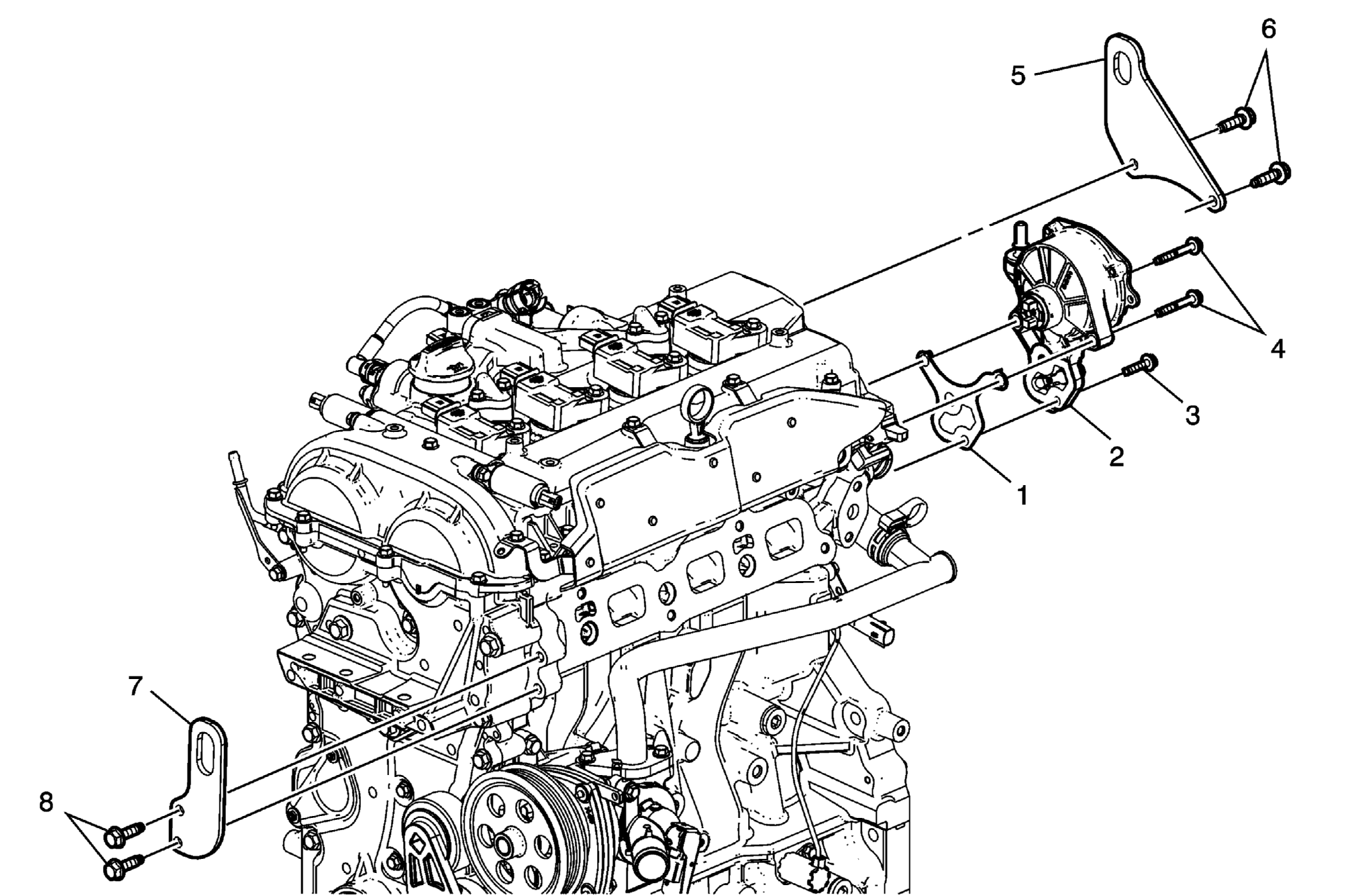

| Callout | Component Name |
|---|---|
| 1 | Vacuum Pump Assembly Gasket
NOTE:
Ensure the vacuum pump seal does not need to be replaced.
|
| 2 | Vacuum Pump |
| 3 | Vacuum Pump Bolt (Qty: 2) Tighten 10 N.m (89 lb in) |
| 4 | Vacuum Pump Bolt (Qty: 2) Tighten 10 N.m (89 lb in) |
| 5 | Engine Rear Lift Bracket |
| 6 | Engine Rear Lift Bracket Bolt (Qty: 2) Tighten 25 N.m (18 lb ft) |
| 7 | Engine Front Lift Bracket |
| 8 | Engine Front Lift Bracket Bolt (Qty: 2) Tighten 25 N.m (18 lb ft) |
