Camshaft Cover Left Side

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

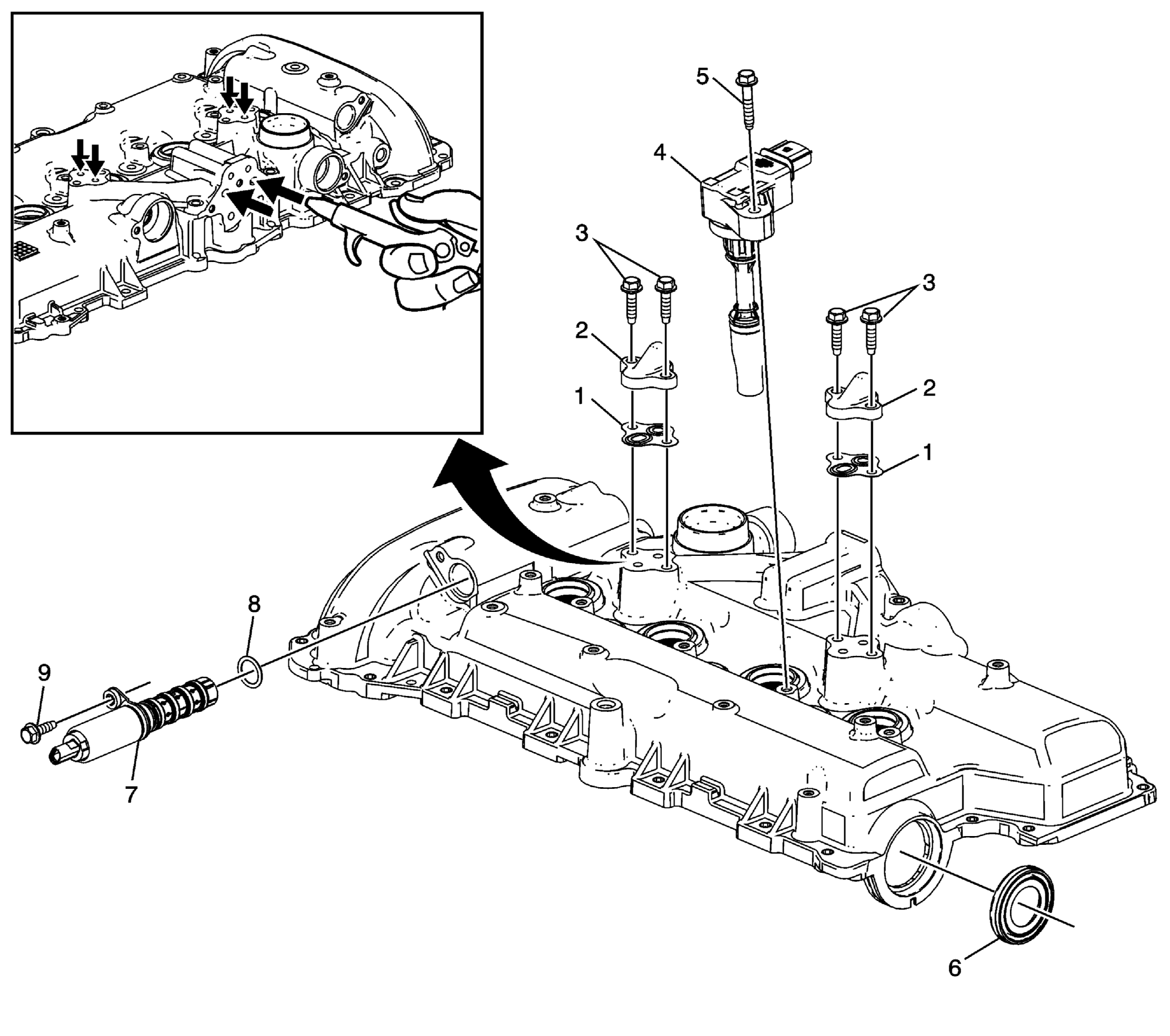

Fig 1: Camshaft Cover Component Cleaning & Inspection Points - Left Side (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Oil Flow Check Valve Housing Assembly Gasket NOTE: When removing the oil flow check valve housing assembly, discard the gasket. Use a NEW gasket during assembly.
2	Oil Flow Check Valve Housing Assembly WARNING: Refer to Safety Glasses and Compressed Air Warning . Procedure: Use a rubber tipped compressed air blow nozzle to clear the oil passages in the camshaft cover from the valve rocker arm oil control valve assembly mount location to the oil flow check valve housing assembly locations. Use a rubber tipped compressed air blow nozzle to clear the oil passages in the camshaft cover at the oil flow check valve housing assembly locations. Inspect the oil flow check valve housing assembly and ensure the oil passages are not clogged. Replace the assembly if the oil flow passages or screen appear obstructed or have accumulated too much debris. NOTE: Do not use cleaning solvent or attempt to clean the oil flow check valve housing assembly oil passages.
3	Oil Flow Check Valve Housing Assembly Bolts (Qty: 4) Tighten 10 N.m (89 lb in)
4	Ignition Coil
5	Ignition Coil Bolt
6	Vacuum Pump Seal Special Tools DT-45866 Seal Installer For equivalent regional tools, refer to Special Tools .
7	Camshaft Position Actuator Control Solenoid Valve - Exhaust
8	Camshaft Position Actuator Control Solenoid Valve O-Ring
9	Camshaft Position Actuator Control Solenoid Valve Bolt Tighten 10 N.m (89 lb in)
