Camshaft Cover Bottom

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

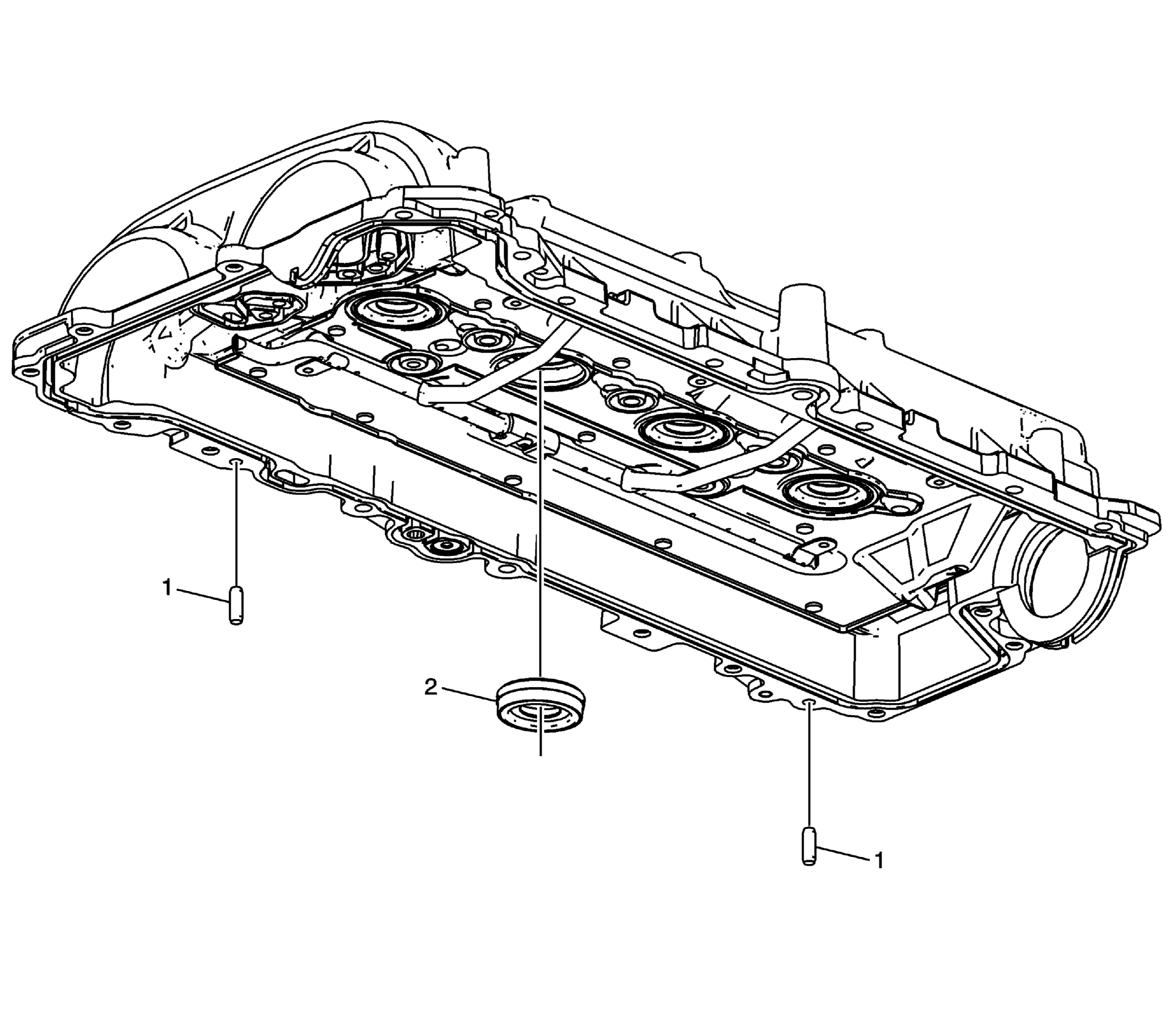

Fig 1: Camshaft Cover Pin & Spark Plug Shield Seal
GM2919840Courtesy of GENERAL MOTORS COMPANY
Camshaft Cover Bottom

Callout Component Name
1 Camshaft Cover Locating Pin
2 Spark Plug Shield Seal
Special Tools
EN-34115  Installer
For equivalent regional tools, refer to Special Tools .
