Camshaft Cleaning and Inspection (LKW)
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

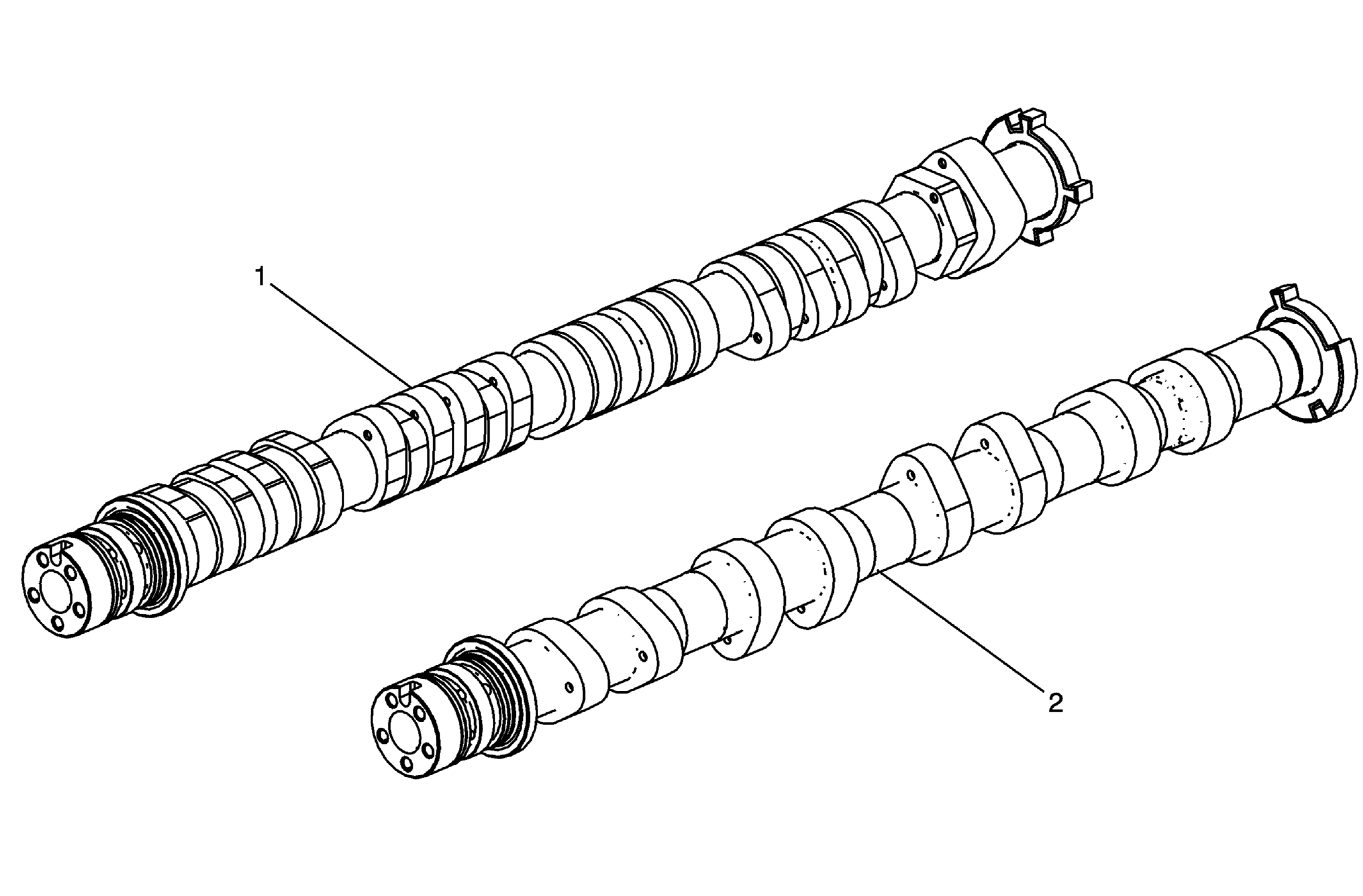

| Callout |
Component Name |
| 1 |
Intake Camshaft Assembly Procedure
- Inspect the camshaft journals and lobes for wear or scoring.
- Inspect the camshaft sprocket alignment notch for damage.
- Wash the camshaft in solvent.
- Oil the camshaft.
|
| 2 |
Exhaust Camshaft Assembly Procedure
- Inspect the camshaft journals and lobes for wear or scoring.
- Inspect the camshaft sprocket alignment notch for damage.
- Wash the camshaft in solvent.
- Oil the camshaft.
|
