Engine Oil Level and Pressure Control

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

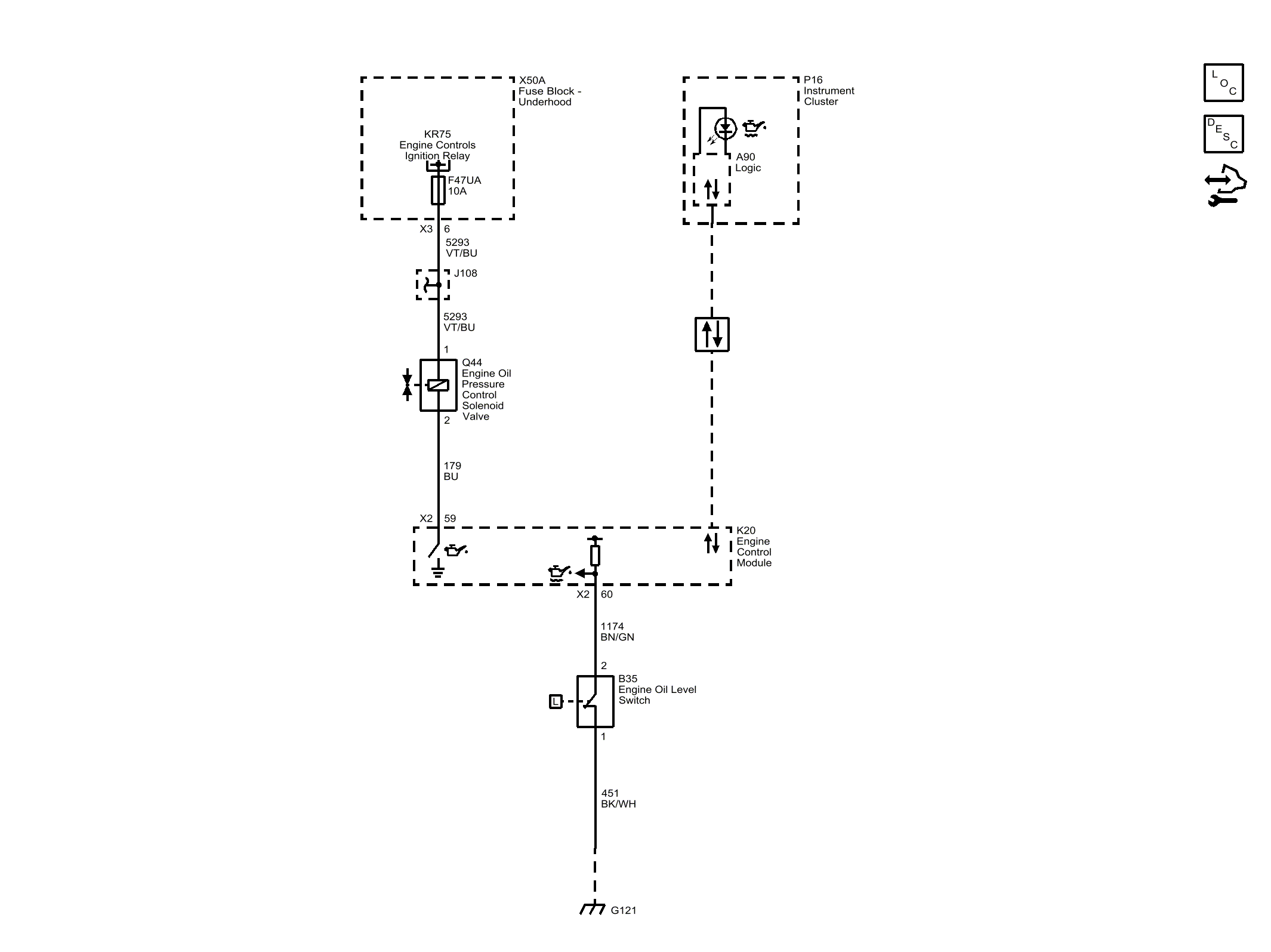

Fig 1: Engine Oil Level and Pressure Control
GM3704489Courtesy of GENERAL MOTORS COMPANY
