Radiator Outlet Hose Replacement (LKW)

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

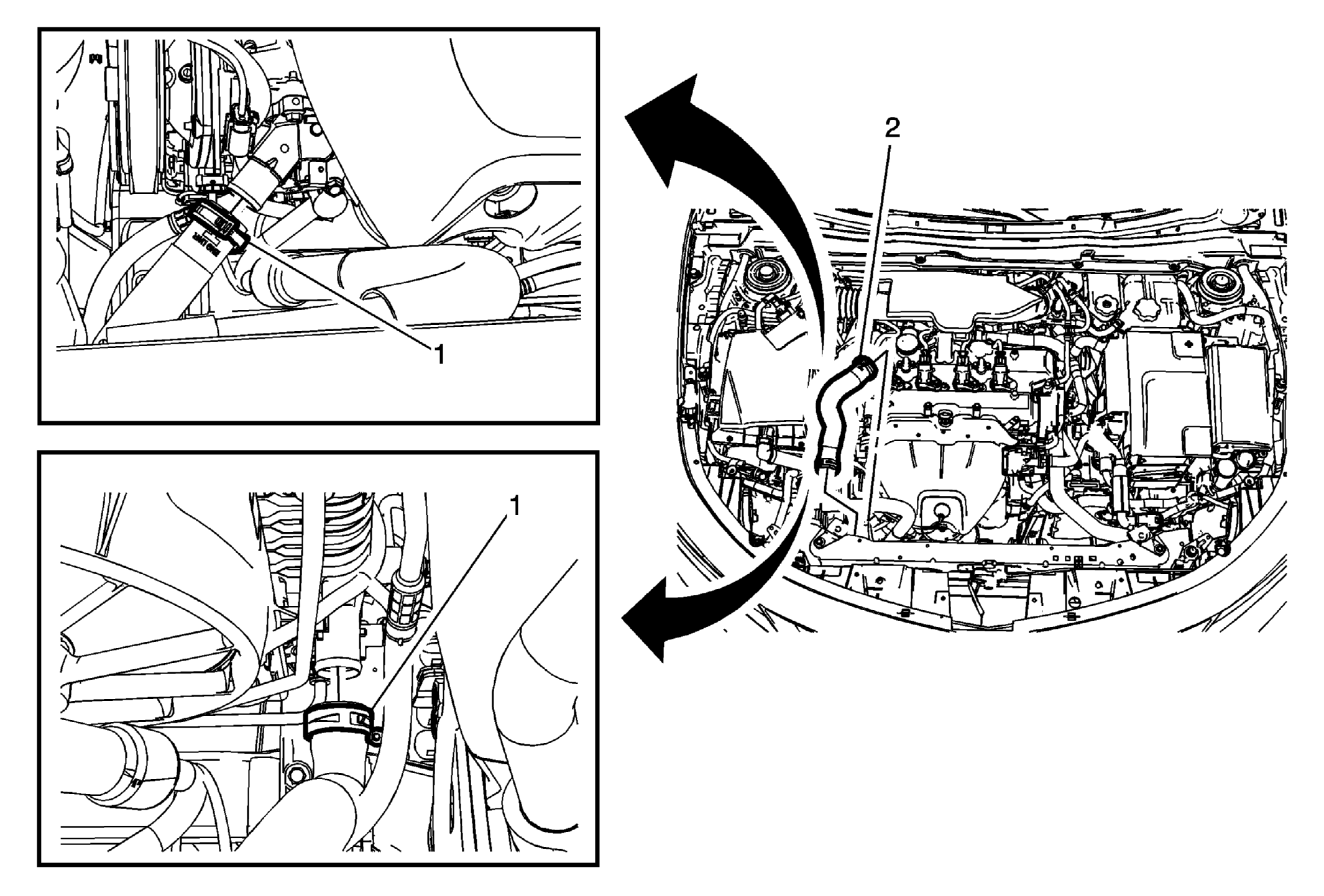

Fig 1: Radiator Outlet Hose & Clamps (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) .
1	Radiator Outlet Hose Clamp (Qty: 2) Procedure Reposition the radiator outlet hose clamps using the BO-38185 hose clamp pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Outlet Hose Procedure Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) . Inspect the cooling system for leaks.

Callout

Component Name

Preliminary Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) .

Radiator Outlet Hose Clamp (Qty: 2)
Procedure
Reposition the radiator outlet hose clamps using the BO-38185 hose clamp pliers.
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Outlet Hose

Procedure

Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) .
Inspect the cooling system for leaks.
