Roof Console Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

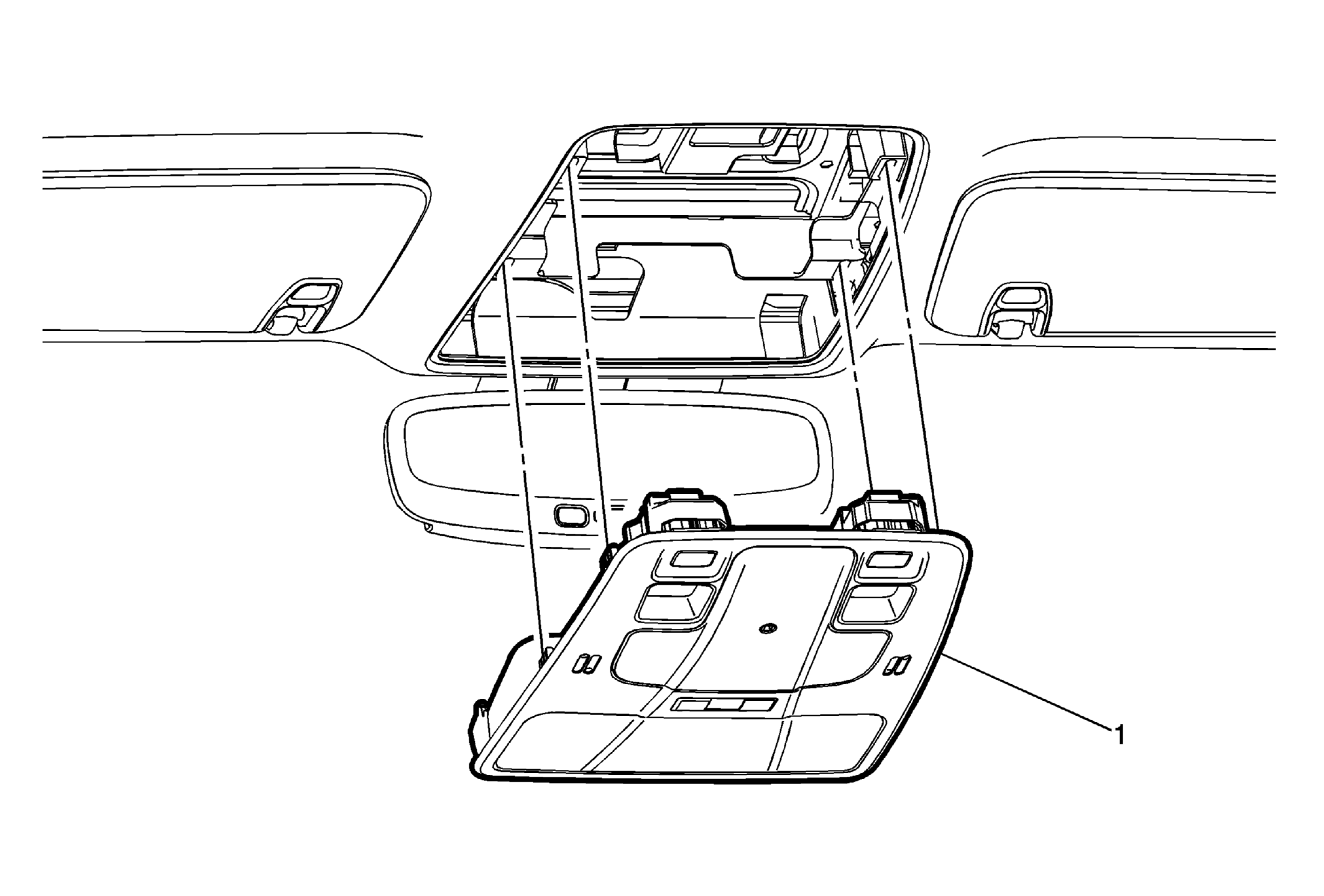

Fig 1: Roof Console Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Roof Console Assembly Procedure Grasp the roof console assembly and pull downward releasing the retainer clips securing the roof console assembly to the headlining assembly. Disconnect the electrical connections. When replacing the roof console assembly, transfer all necessary components. NOTE: Replacement overhead consoles may have plugs inserted into the microphone holes that must be removed before the microphone can be re-installed. These plugs can be removed by pulling on stems located on the back side of the overhead console or they can be drilled out.

Callout

Component Name

Roof Console Assembly

Procedure

Grasp the roof console assembly and pull downward releasing the retainer clips securing the roof console assembly to the headlining assembly.
Disconnect the electrical connections.
When replacing the roof console assembly, transfer all necessary components.
NOTE: Replacement overhead consoles may have plugs inserted into the microphone holes that must be removed before the microphone can be re-installed. These plugs can be removed by pulling on stems located on the back side of the overhead console or they can be drilled out.
