Inside Rearview Mirror Wiring Harness Cover Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |

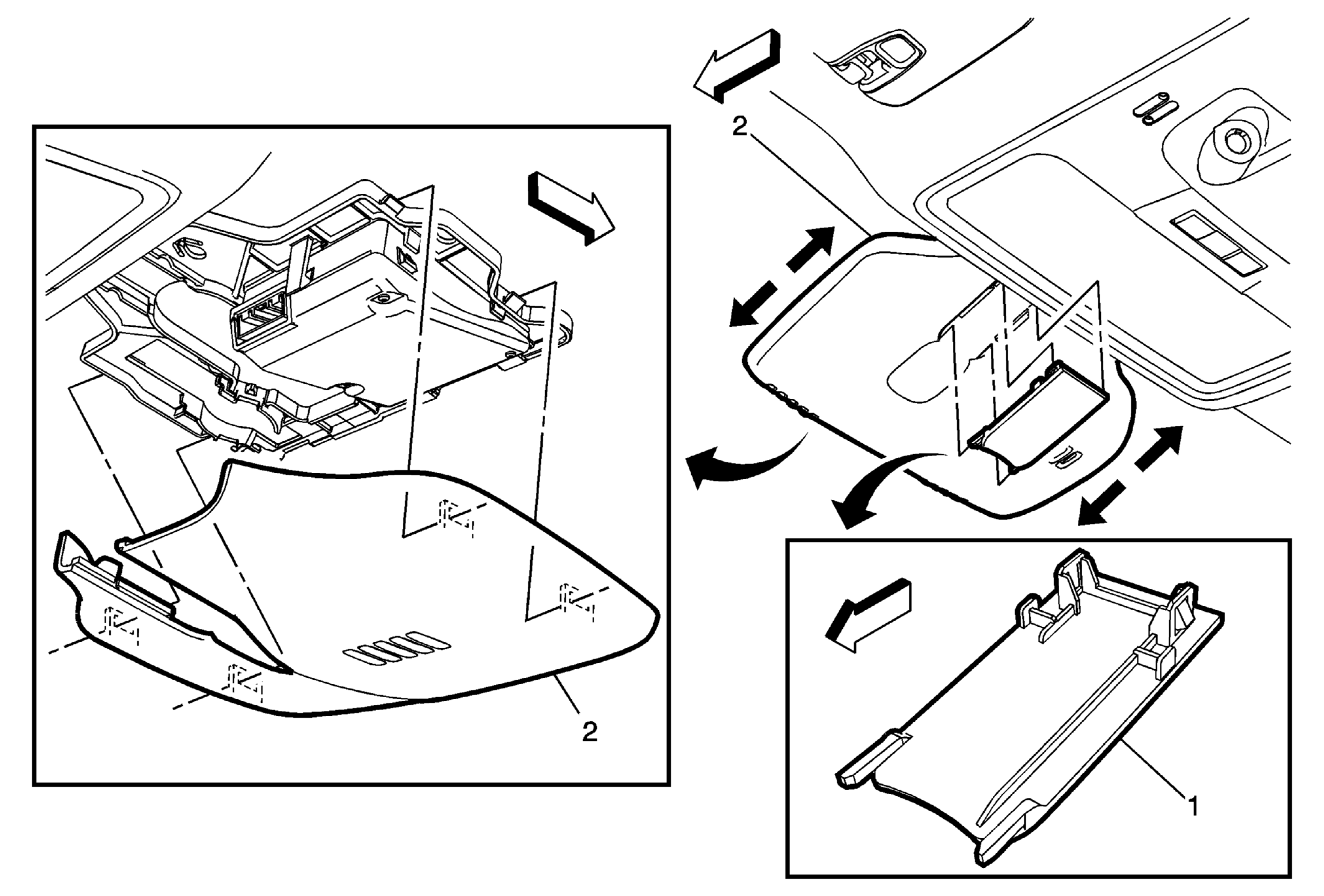

Inside Rearview Mirror Wiring Harness Center Cover Procedure
- Adjust the mirror to the full upward position.
- Using a suitable plastic tool, insert the tool between the edge of the center cover and cover, turn the tool until the center cover releases.
- Grasp both sides of the inside rearview mirror wiring harness cover.
- Pushing upward on the cover, releasing the cover tabs from the windshield retainer.
|
| 2 |
Inside Rearview Mirror Wiring Harness Cover |
