Rear Compartment Side Trim Panel Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

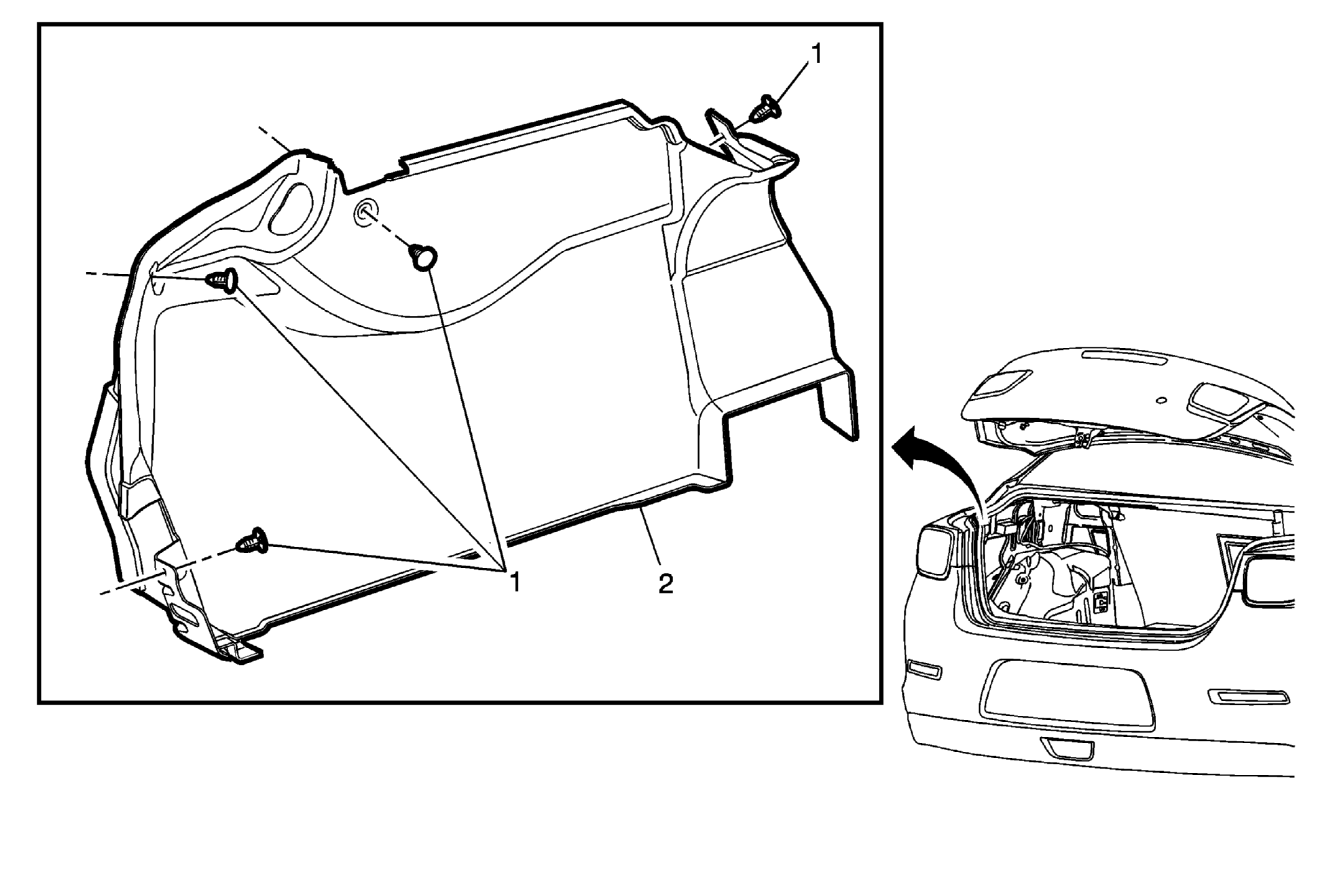

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement . |
|
| 1 | Rear Compartment Side Trim Panel Retainer (Qty: 4) |
| 2 | Rear Compartment Side Trim Panel Assembly |
