P12L Horn - Left
WARNING: This page is about a different car, the 2016 Chevrolet SS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

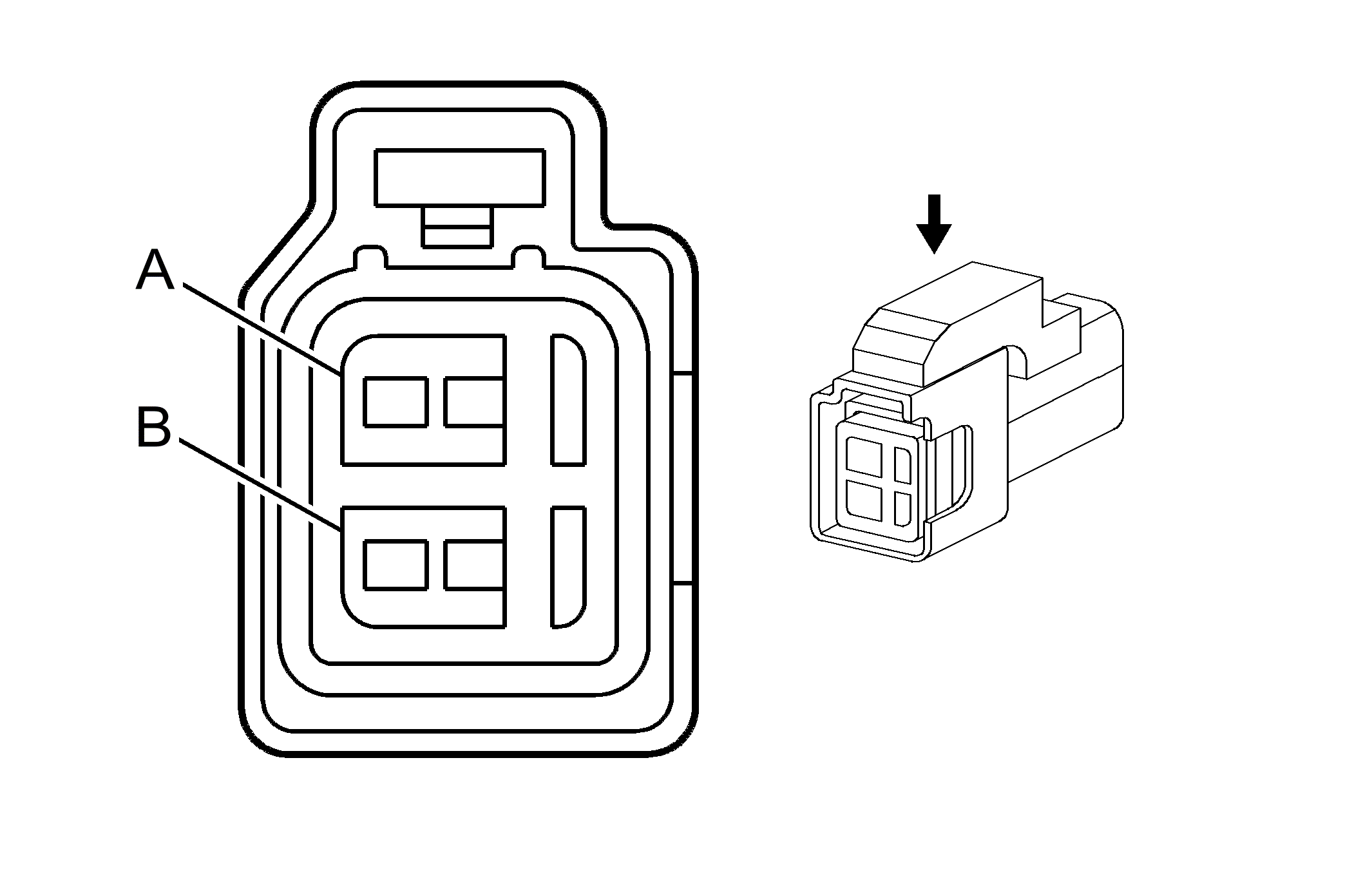

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 7283-8034-30
- Service Connector: 88988054
- Description: 2-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
2 |
BN/GY |
29 |
Horn Control |
I |
- |
| B |
2 |
BK |
550 |
Ground |
I |
- |
