G24 Windshield Washer Pump
WARNING: This page is about a different car, the 2016 Chevrolet SS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

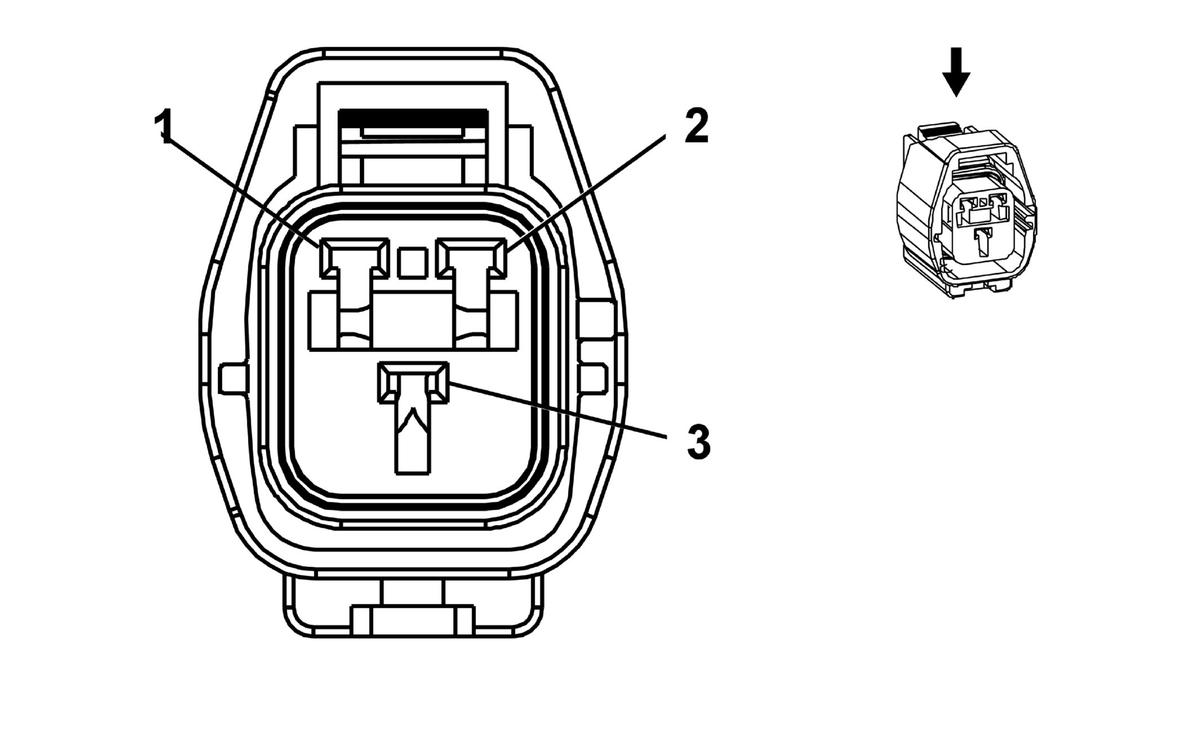

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 7283-7031-10
- Service Connector: 13578536
- Description: 3-Way F 090 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-18 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
GY/VT |
228 |
Windshield Washer Pump Control |
I |
- |
| 2 |
0.75 |
BK |
650 |
Ground |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
