Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the valve tips. Refer to Adhesives, Fluids, Lubricants and Sealers (LKW) .

Fig 1: Valve Tips
Courtesy of GENERAL MOTORS COMPANY
Lubricate the roller bearings with valve rocker arm lubricant. Refer to Adhesives, Fluids, Lubricants and Sealers (LKW) .

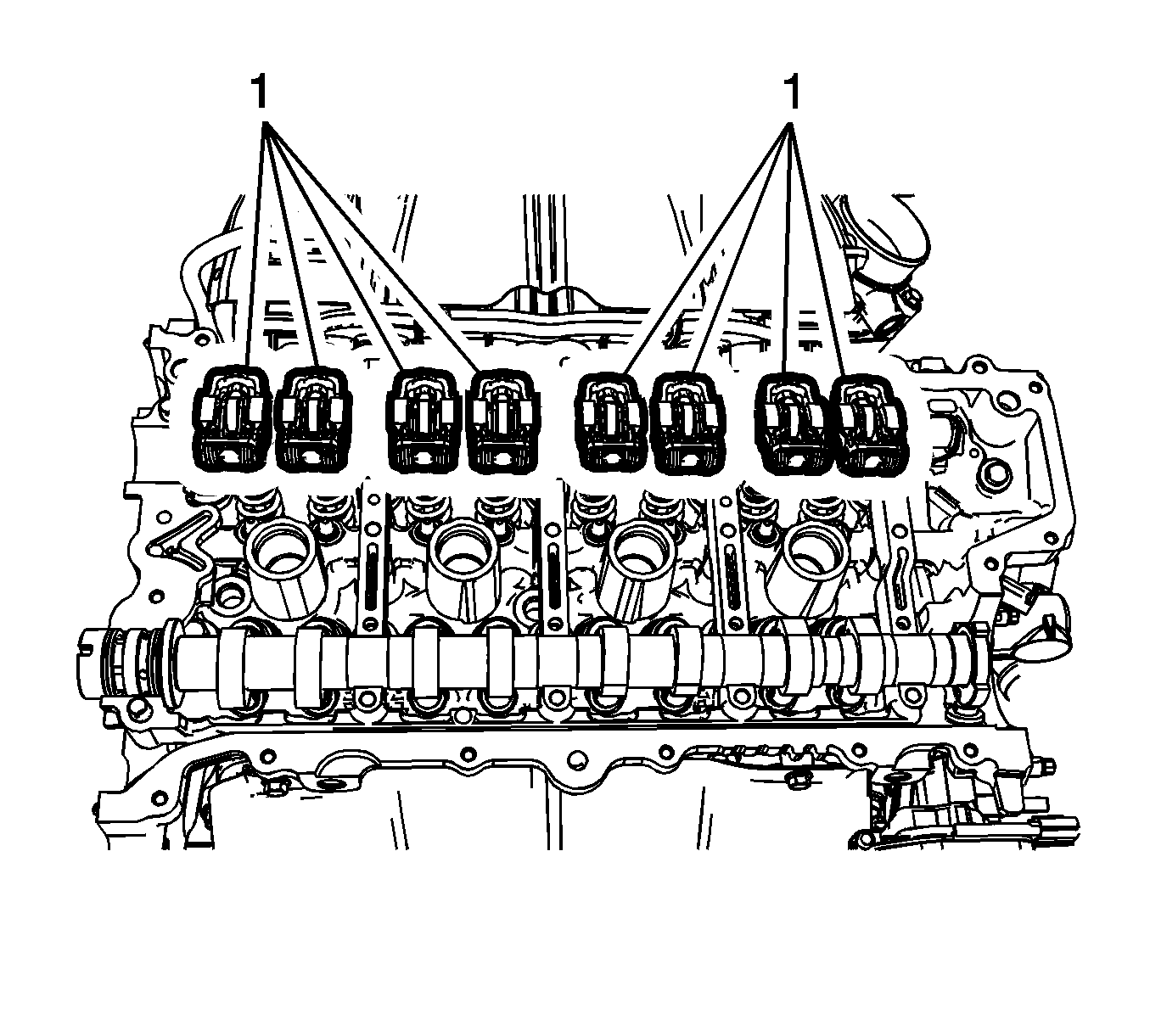

Fig 2: Intake Valve Rocker Arms (LKW)
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Used rocker arms must be returned to the original position on the camshaft. If the camshaft is being replaced, the rocker arms actuated by the camshaft must also be replaced.
- Pre-oil roller bearings before installation.
Position the valve rocker arm (1) on the tip of the valve stem and on the lash adjuster and lubricate. Refer to Adhesives, Fluids, Lubricants and Sealers (LKW) .
Install the intake camshaft. Refer to Intake Camshaft Replacement (LKW) .
