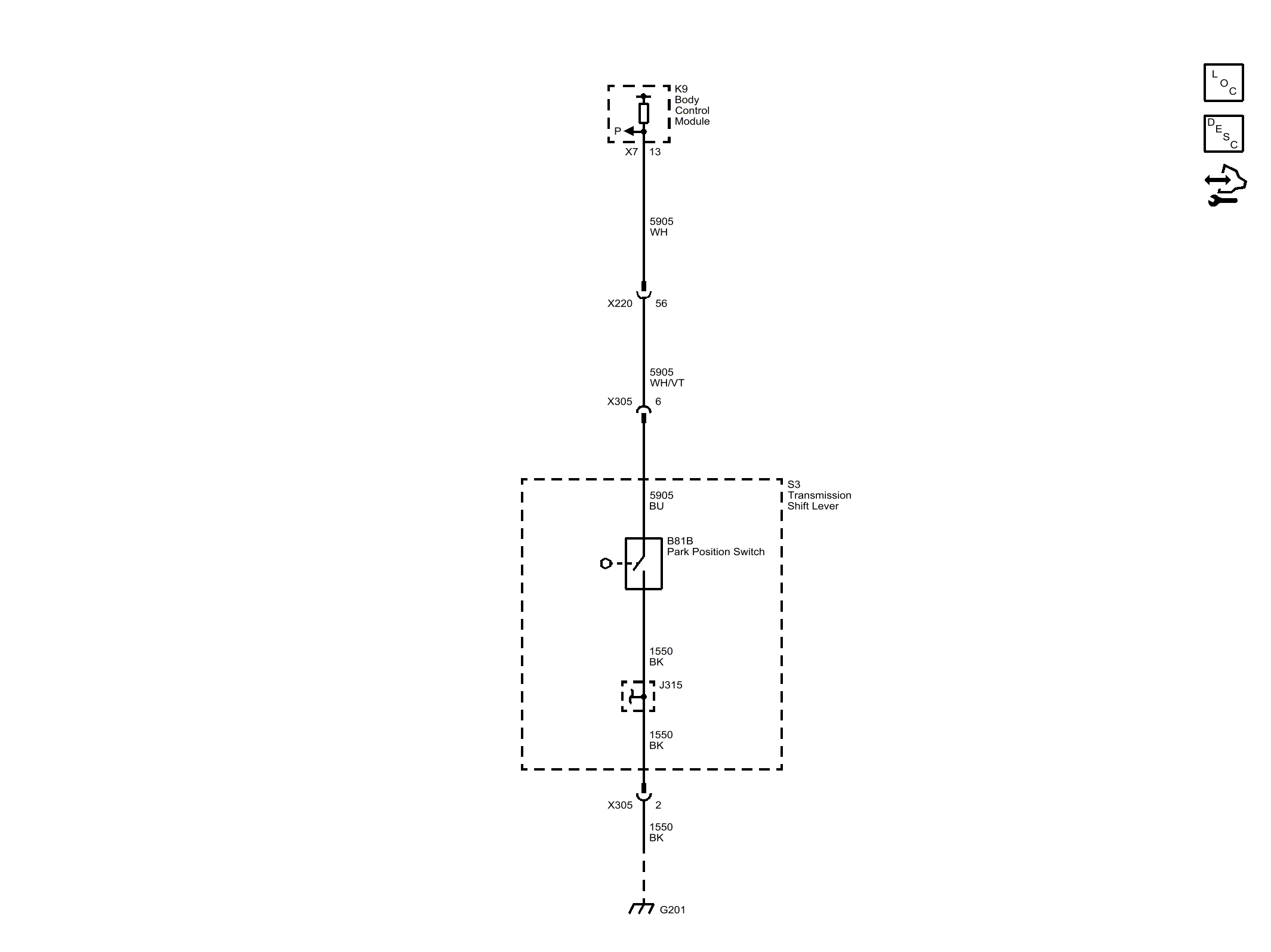

Ignition Lock
| Callout | Component Name |
|---|---|
| CAV_13 | 13 |
| CONN_X7 | X7 |
| 5905 | Key Capture/Column Lock Shift Position Signal |
| 5905_WH/VT | 5905 WH/VT |
| 1550 | Ground |
| 1550_BK | 1550 BK |
| CAV_56 | 56 |
| 5905_WH | 5905 WH |
| 5905_BU | 5905 BU |
| 1550_BK | 1550 BK |
| 1550_BK | 1550 BK |
| CAV_6 | 6 |
| CAV_2 | 2 |
| G201 | G201 |
| X220 | X220 |
| J315 | J315 |
| X305 | X305 |
| X305 | X305 |
| K9 | K9 Body Control Module |
| B81B | B81B Park Position Switch |
| S3 | S3 Transmission Shift Lever |
