Body Harness Routing - Rear Compartment - Right Side (without HP4)

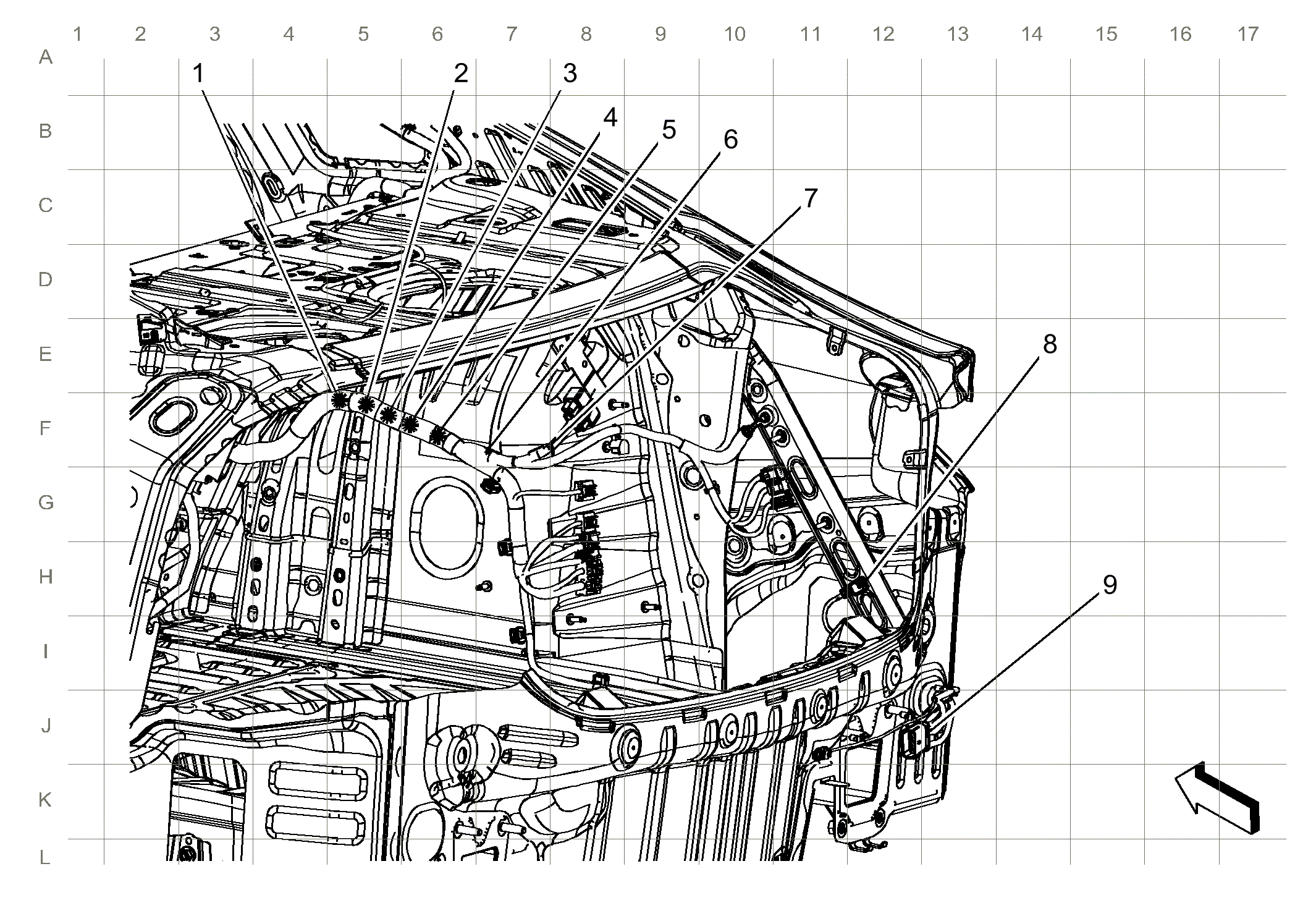

Fig 1: Body Harness Routing - Rear Compartment - Right Side (without HP4)

Courtesy of GENERAL MOTORS COMPANY

Items
1. J403
2. J404 (J71)
3. J405 (J71)
4. J406 (J71)
5. J407 (J71)
6. J410
7. J411
8. X420 X420 Tail Lamp - Right Harness to Body Harness (-UGE)
9. X404 X404 Rear Bumper Harness to Body Harness
