Body Harness Routing - Passenger Compartment - Right Rear (HP4)

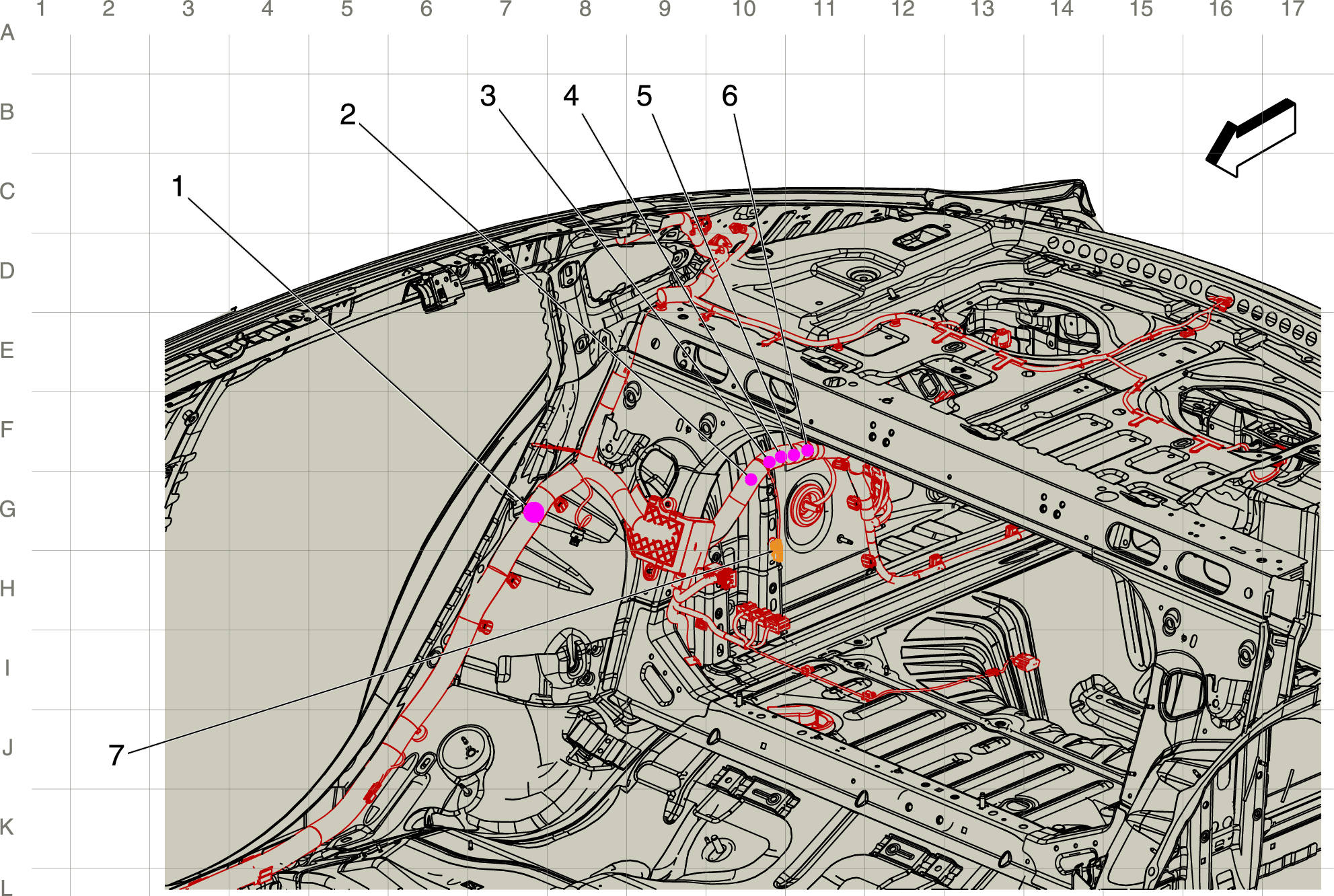

Fig 1: Body Harness Routing - Passenger Compartment - Right Rear (HP4)
GM4543794Courtesy of GENERAL MOTORS COMPANY
Items
1. J309
2. J403
3. J404 (J71)
4. J405 (J71)
5. J406 (J71)
6. J407 (J71)
7. X407 (HP4) X407 Keyless Entry Antenna Harness to Body Harness (HP4)
