Body Harness Routing - Passenger Compartment - Left Front (HP4)

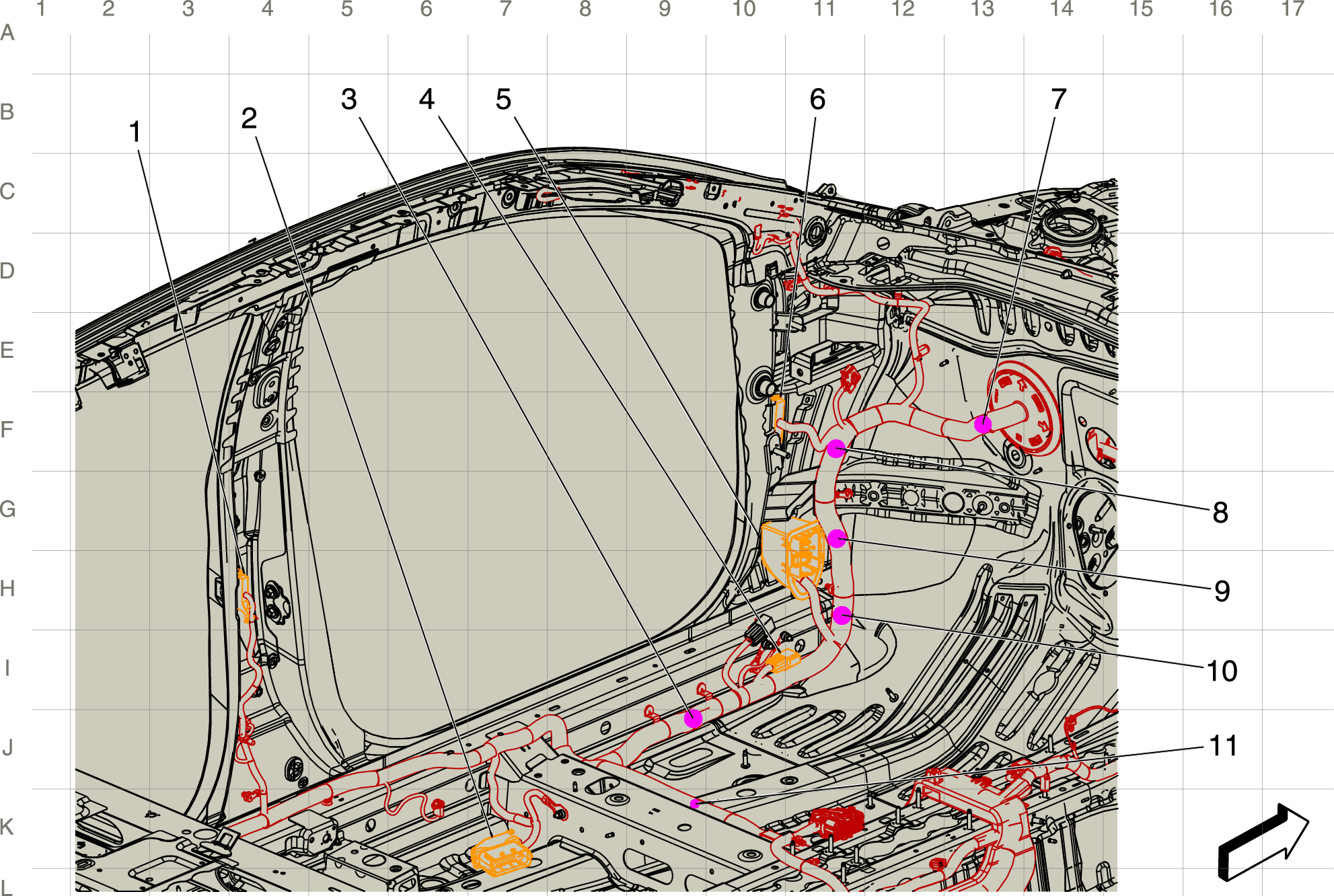

Fig 1: Body Harness Routing - Passenger Compartment - Left Front (HP4)

Courtesy of GENERAL MOTORS COMPANY

Items
1. X700 X700 Left Rear Door Harness to Body Harness
2. X310 X310 Driver Seat Harness to Body Harness
3. J302
4. X211 X211 Instrument Panel Harness to Body Harness
5. X210 X210 Instrument Panel Harness to Body Harness
6. X500 X500 Driver Door Harness to Body Harness
7. J200
8. J201
9. J202
10. J203
11. J308
