Body Harness Routing - Passenger Compartment - Front FLoor (without HP4)

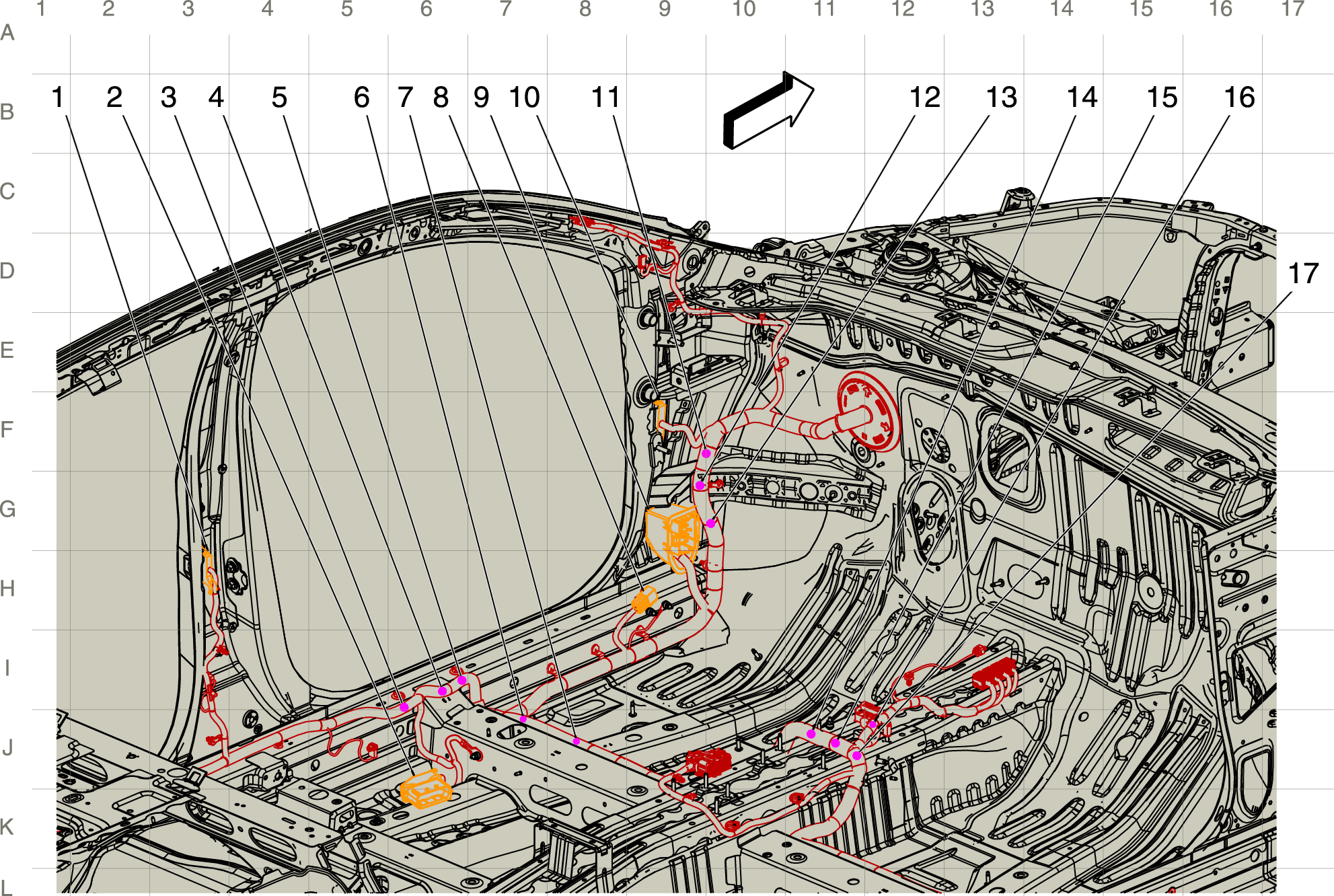

Fig 1: Body Harness Routing - Passenger Compartment - Front FLoor (without HP4)
GM4546889Courtesy of GENERAL MOTORS COMPANY
Items
1. X700 X700 Left Rear Door Harness to Body Harness
2. X310 X310 Driver Seat Harness to Body Harness
3. J325
4. J310
5. J208
6. J308
7. J324
8. X211 X211 Instrument Panel Harness to Body Harness
9. X210 X210 Instrument Panel Harness to Body Harness
10. X500 X500 Driver Door Harness to Body Harness
11. J201
12. J202
13. J203
14. J209
15. J304
16. J341
17. J342
